ZT1 60
Ultima Series™ ZT
Item#:
17AREAC5A10
New For 2025
Ultimate Sales Event — $200 OFF
From
$4,299.00
$4,499.00
MSRP
New For 2025
ZT1 60
Ultima Series™ ZT
Item#:
17AREAC5A10
Ultimate Sales Event — $200 OFF
From
$4,299.00
$4,499.00
MSRP

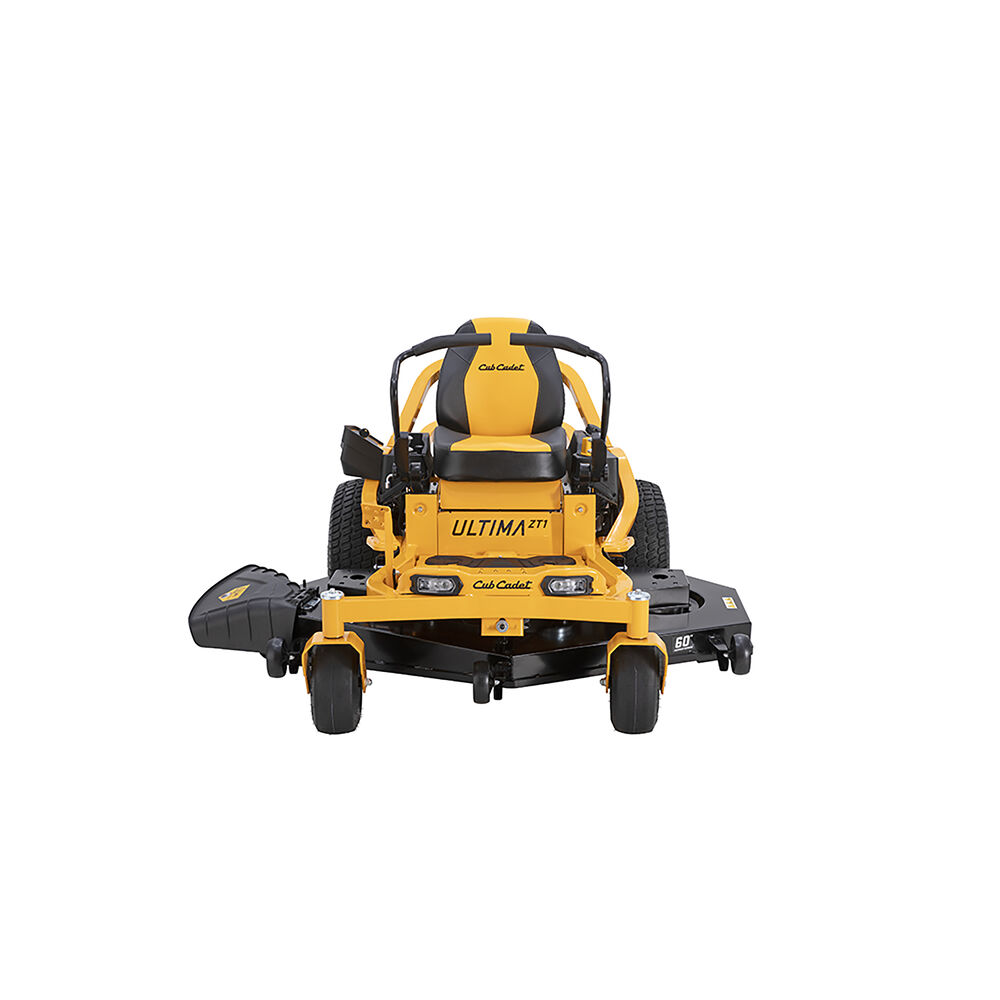

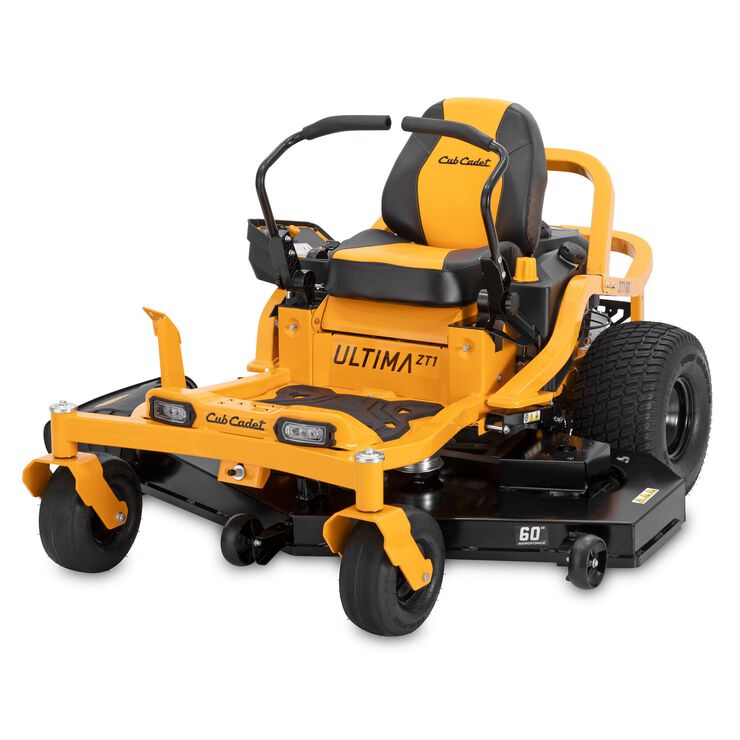

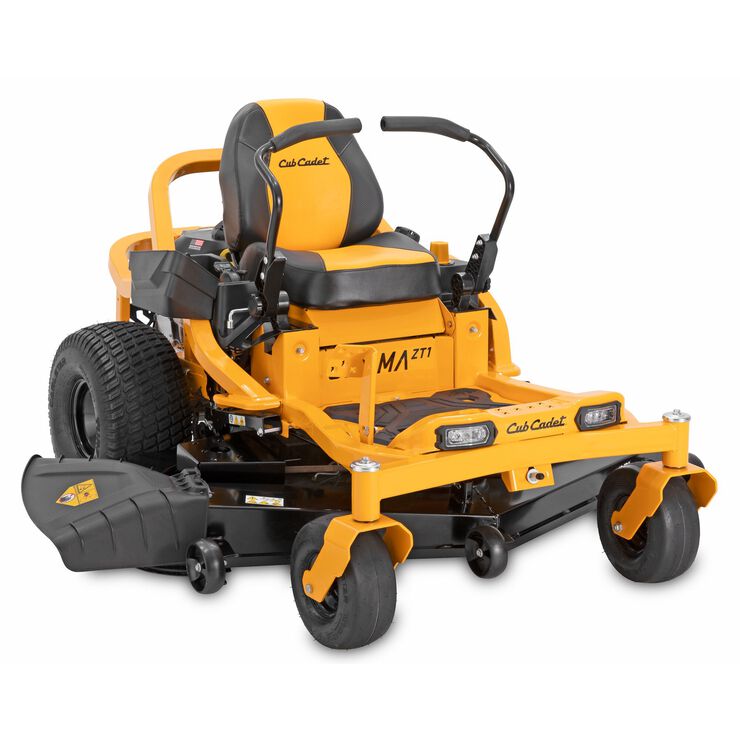

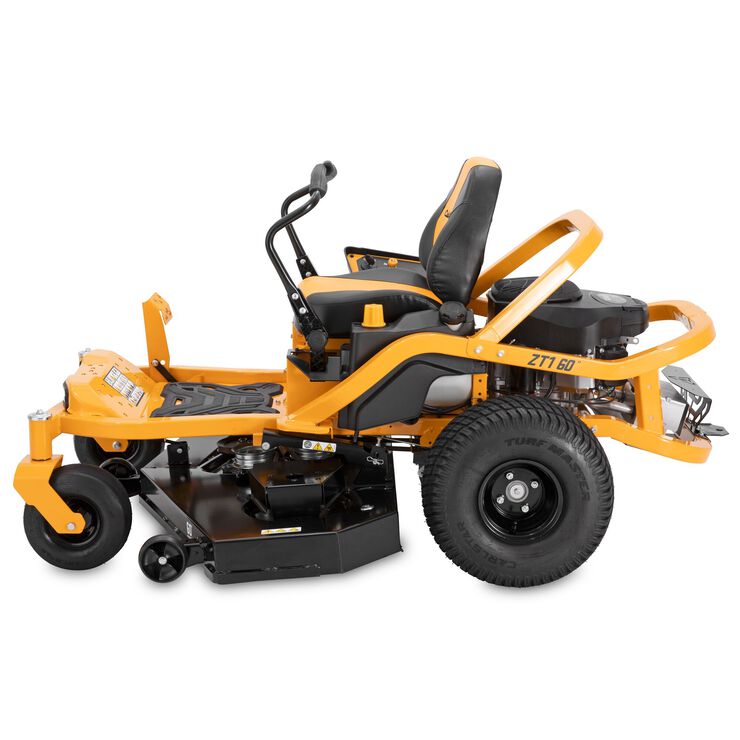

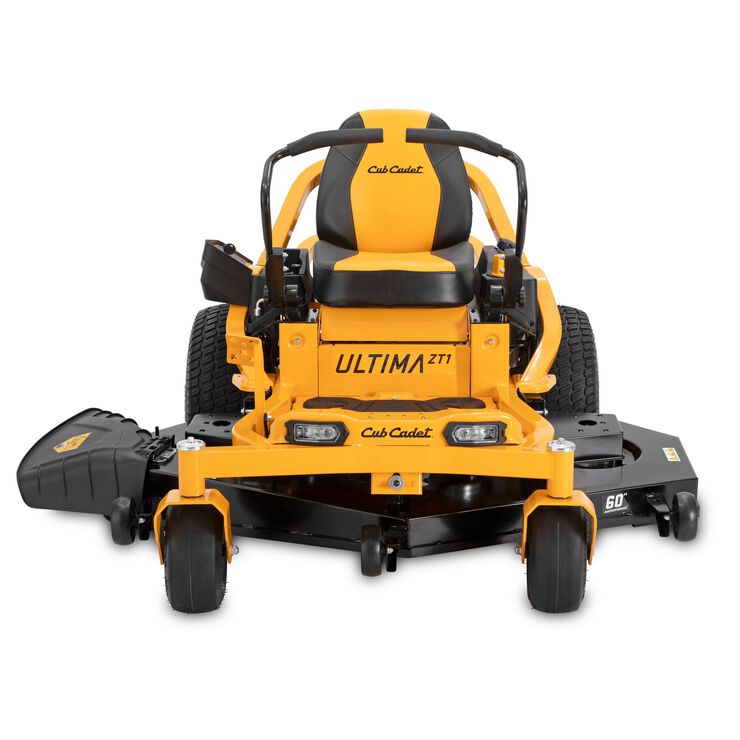

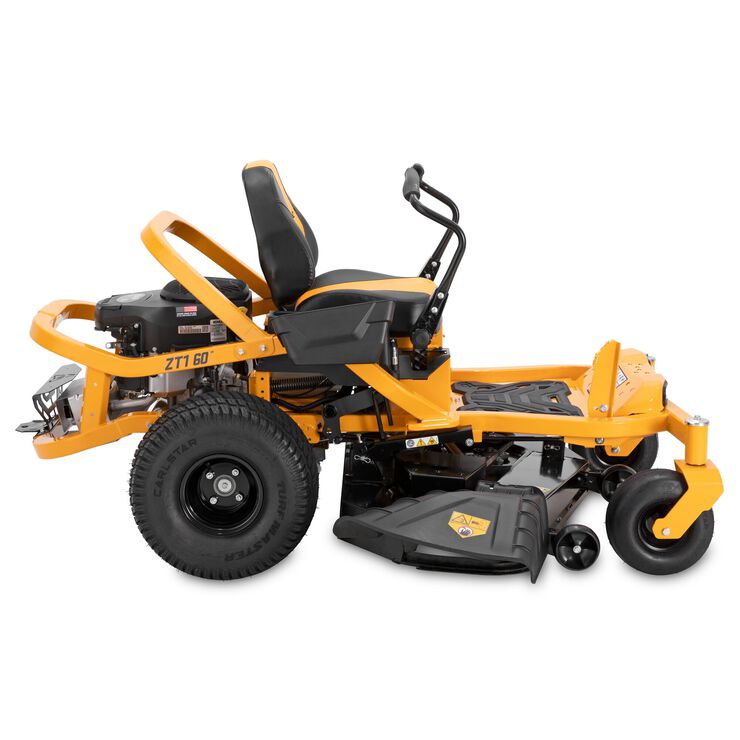

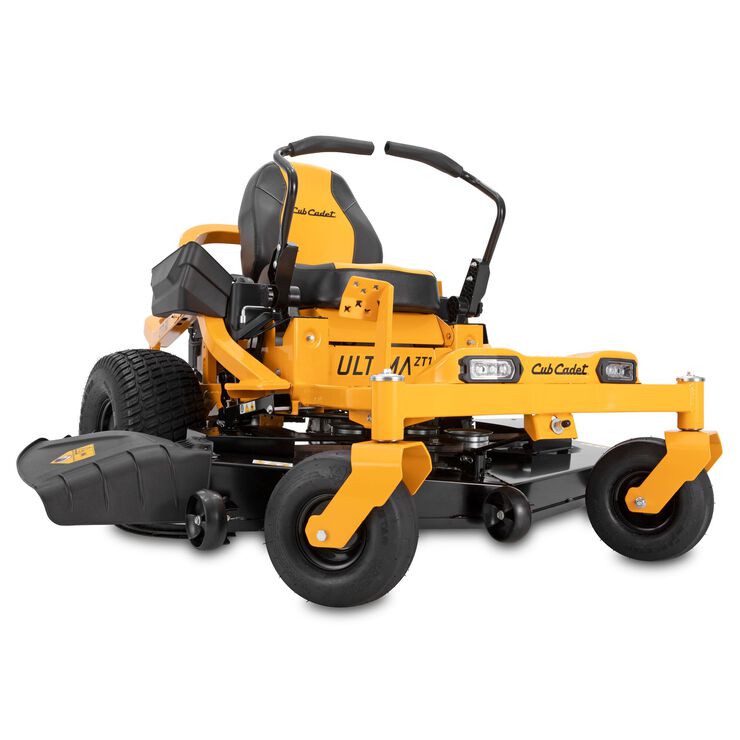

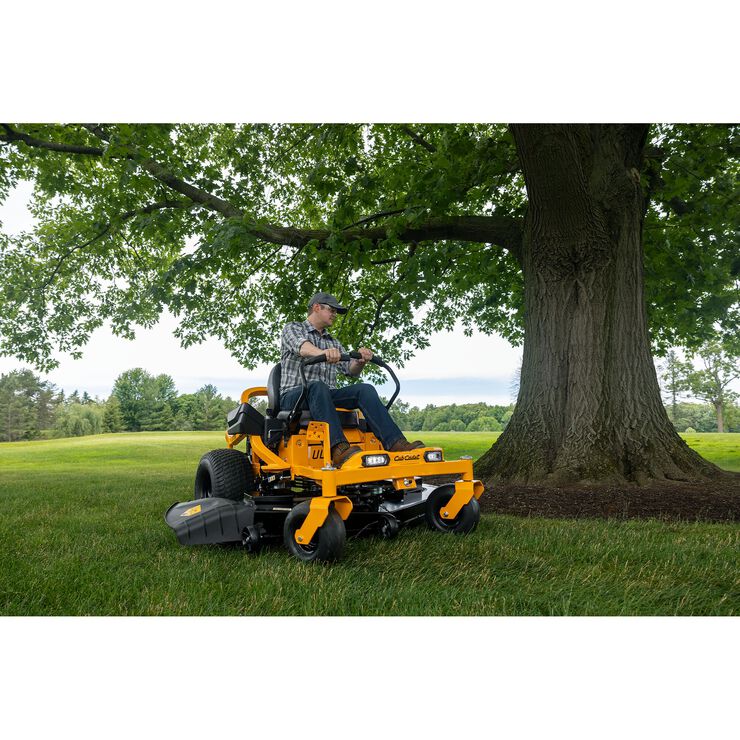

The Ultima Series ZT1 60 is a 60-inch zero-turn lawn mower with a 26 HP /747cc engine. It is designed to mow up to 5 acres, making it perfect for large properties. The AeroForce™ fabricated deck provides a high-quality cut with few clumps and an even finish. It features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. The mower has a strong tubular steel frame with a fully e-coated corrosion defense system to protect against wear and tear..

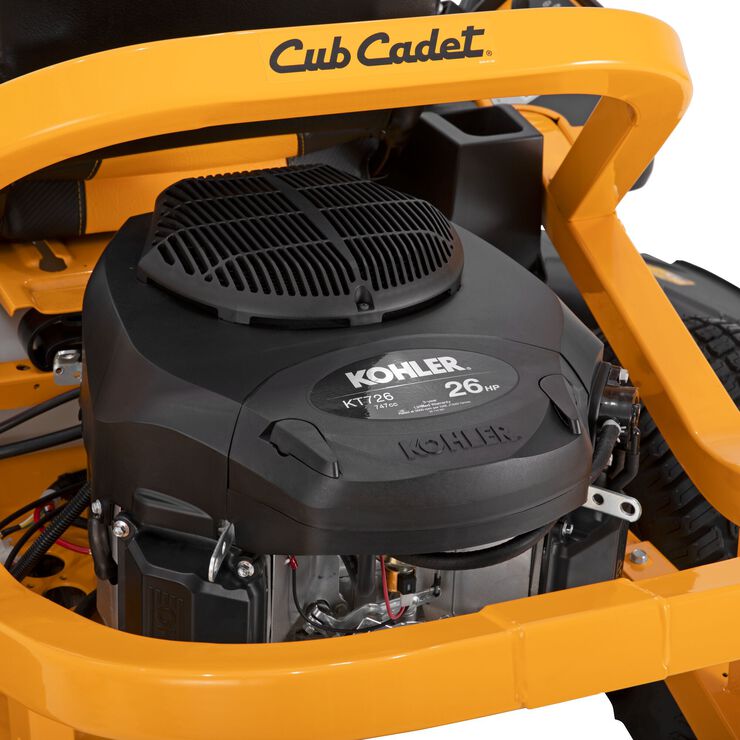

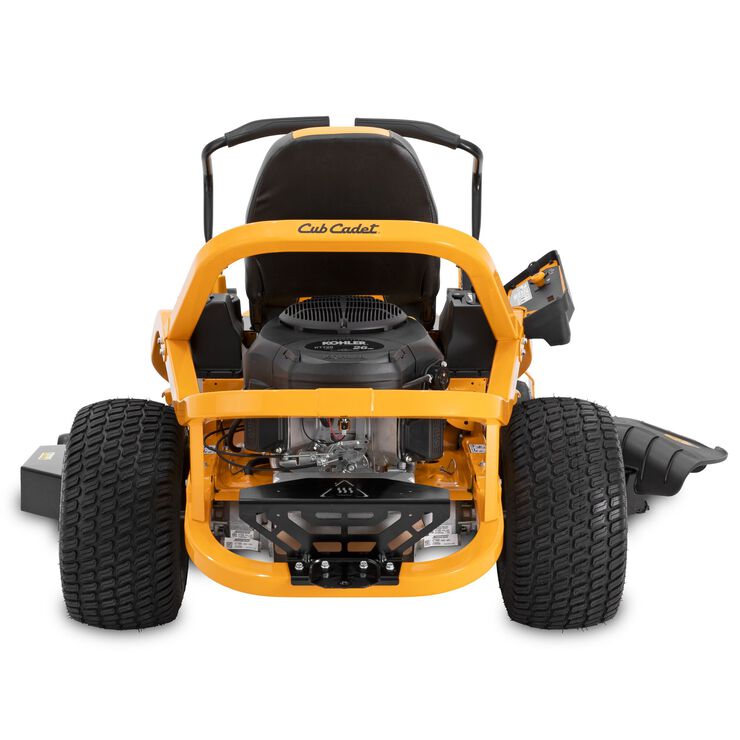

- A 26HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- 60-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
- A continuous square 2 in. x 2 in. tubular steel frame with fully e-coated lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear.
- Settle into a fully adjustable command center and experience comfort designed to give you speed and control.
eDealerList : [{"dealerID":"13866","eDealerProximity":9.5,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":17.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":27.1,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Delivering to:
43215
Pick up at:
(614) 991-5057
Your Dealer
Vernon Dell Tractor - STORE #13866
2871 BROADWAY,
GROVE CITY, OH 43123
(614) 991-5057
Hours of Operations
- Sunday CLOSED - CLOSED
- Monday 8:00 AM - 5:00 PM
- Tuesday 8:00 AM - 5:00 PM
- Wednesday 8:00 AM - 5:00 PM
- Thursday 8:00 AM - 5:00 PM
- Friday 8:00 AM - 5:00 PM
- Saturday CLOSED - CLOSED
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
eDealerList : [{"dealerID":"13866","eDealerProximity":9.5,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":17.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":27.1,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Delivering to:
43215
Pick up at:
(614) 991-5057
Your Dealer
Vernon Dell Tractor - STORE #13866
2871 BROADWAY,
GROVE CITY, OH 43123
(614) 991-5057
Hours of Operations
- Sunday CLOSED - CLOSED
- Monday 8:00 AM - 5:00 PM
- Tuesday 8:00 AM - 5:00 PM
- Wednesday 8:00 AM - 5:00 PM
- Thursday 8:00 AM - 5:00 PM
- Friday 8:00 AM - 5:00 PM
- Saturday CLOSED - CLOSED
Includes Premium Servicing and Assembly
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
Attachments & Accessories
ZT1 60 Features
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear

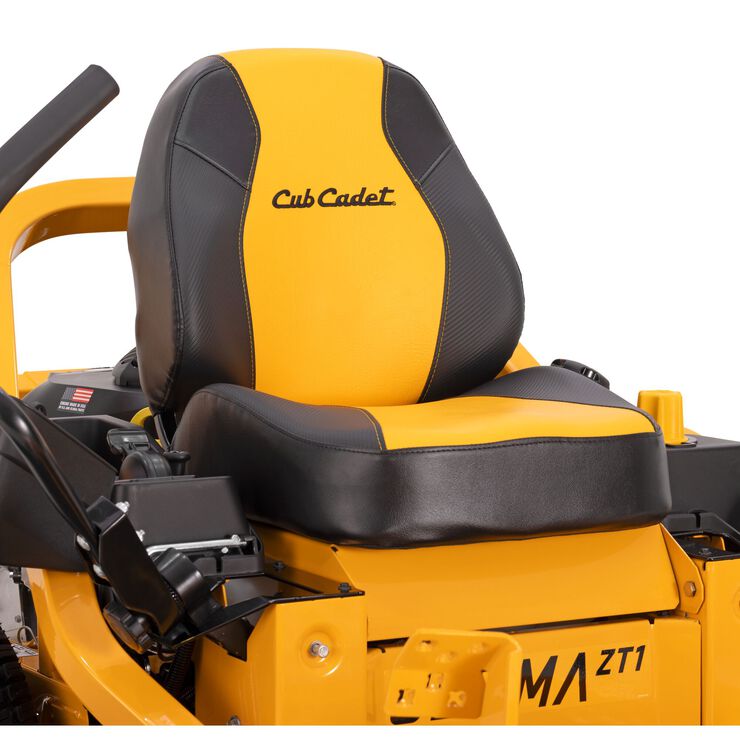

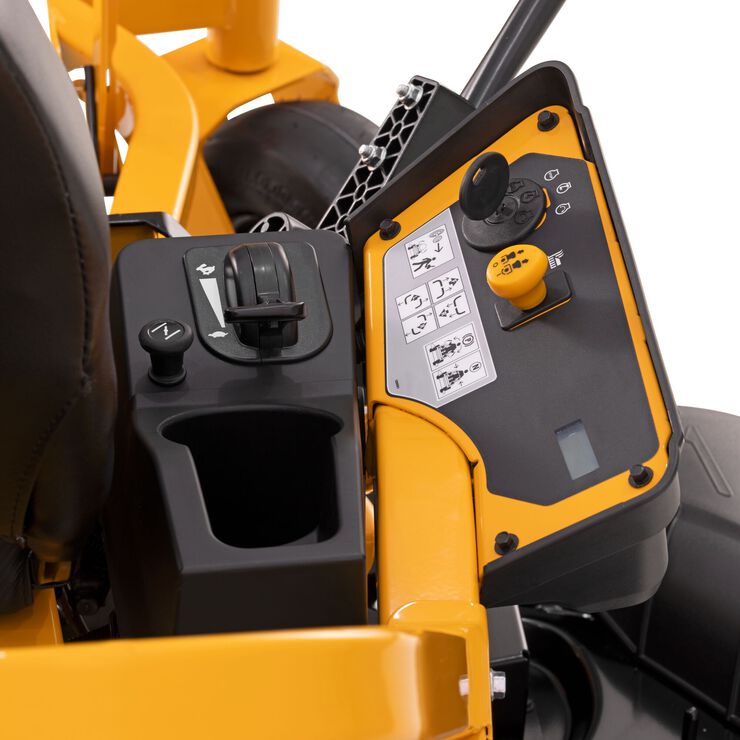

Redefining Comfort
Settle into a fully adjustable command center and experience comfort designed to give you speed and control.

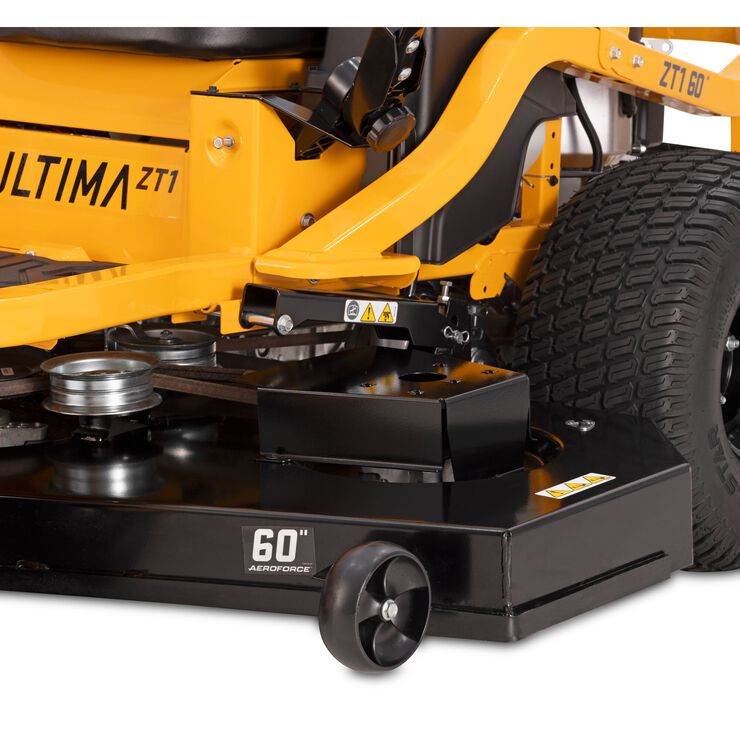

AeroForce Deck™
The AeroForce™ fabricated deck is engineered to deliver a premium cut with minimal clumps, fine clips and evenness.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT726
- Engine Displacement 747cc
- Engine Output 26HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear EZT 2200
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 20" high back
- Armrests No
- Seat Adjustment Knob
- Front Caster Suspension No
Wheels

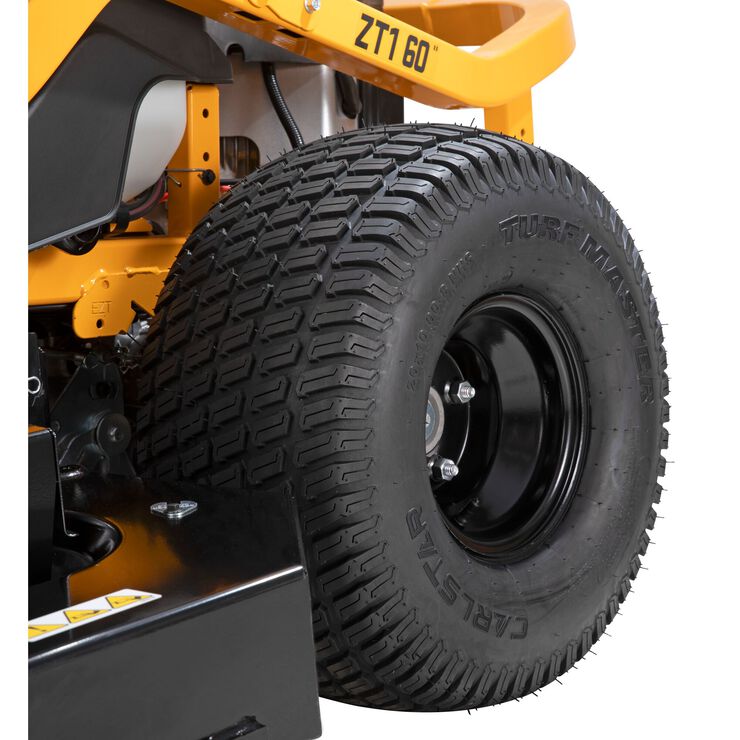

- Rear Tires 20''x 10''- 8''
- Front Tires 11"x 6"-5"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZT
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17AREAC5A10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
