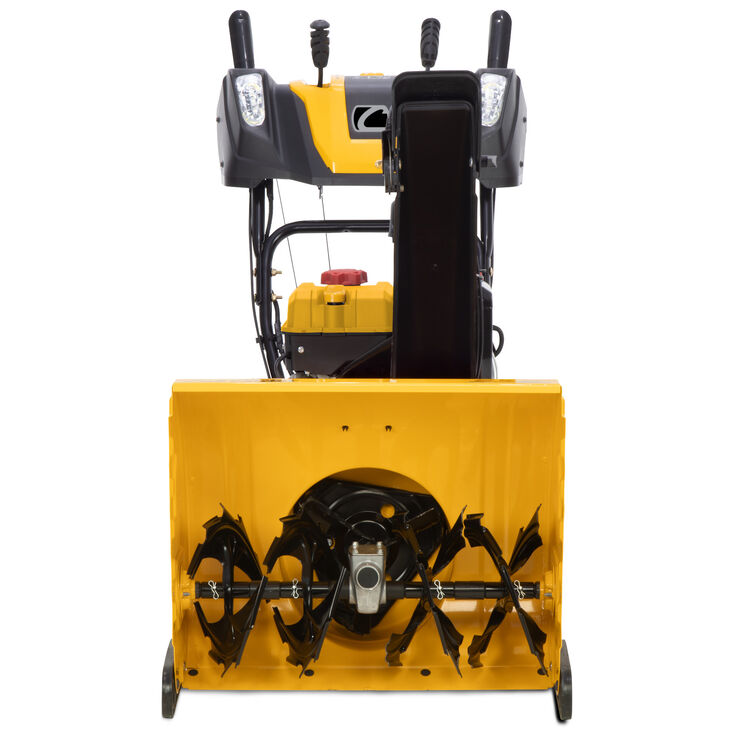

2X™ 24" IntelliPOWER® Snow Blower
2X™ TWO-STAGE POWER
Item#:
31AM5HVRB10
From
$1,199.00
MSRP
2X™ 24" IntelliPOWER® Snow Blower
2X™ TWO-STAGE POWER
Item#:
31AM5HVRB10
From
$1,199.00
MSRP
Or
Apply Now
$105/mo2 No interest if paid in full within 12 months
Total includes $50 promotional fee. Interest will be charged from the purchase date if the purchase balance is not paid in full by the end of the promotional period Minimum purchase $500. Advertised payment is greater than required minimum payment.. See details

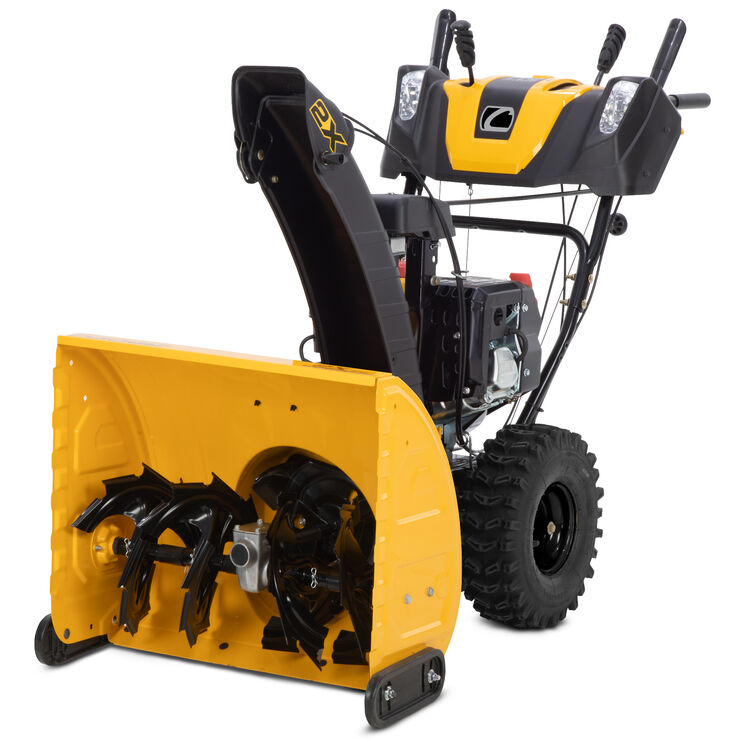

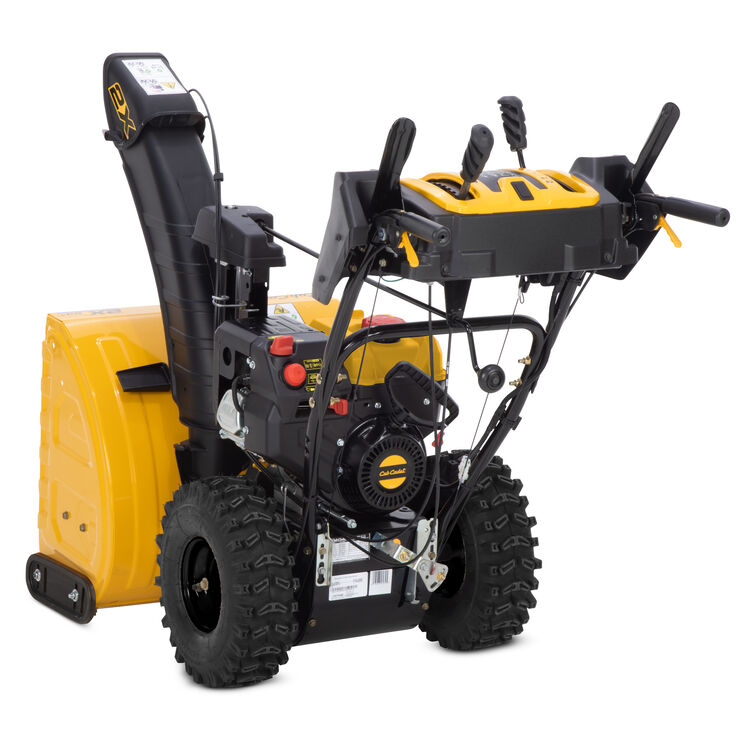

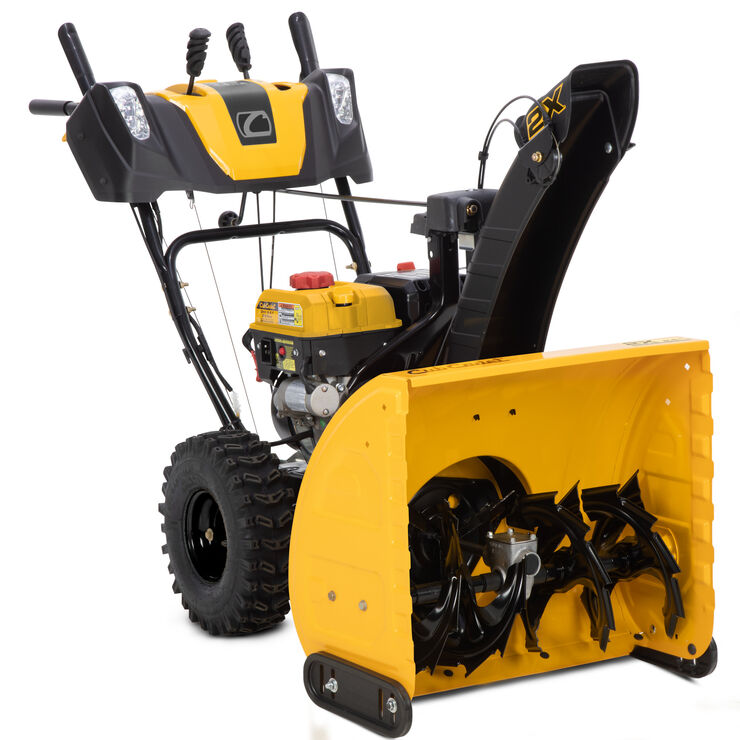

Power steering lets you tackle winter weather easily with this 2X 24 in. 243cc IntelliPOWER®™ Gas Two-Stage Snow Blower engineered to take on up to 12 in. of snow†. IntelliPOWER® technology is designed to deliver consistent power in heavy, deep, and wet snow conditions. Includes trigger-controlled power steering with a self-propelled drive engineered for control, maneuverability, and single-hand operation. Push button electric start is designed for reliable starting without the need to pull start
Documents and Guides
Learn More about Cub Cadet Certified Engines, Intellipower™ and EFI

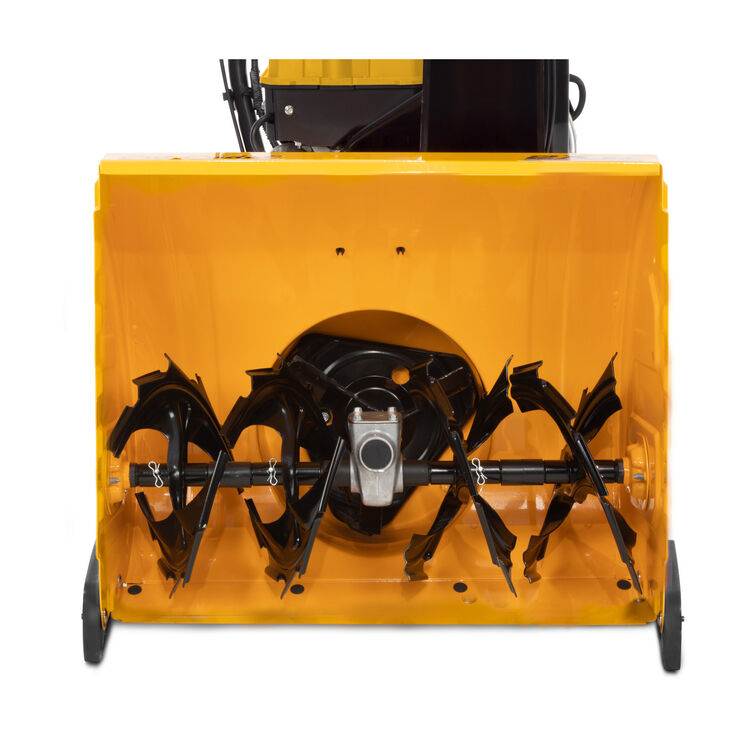

- 24 in. clearing width and 21 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 12 in. of snow†

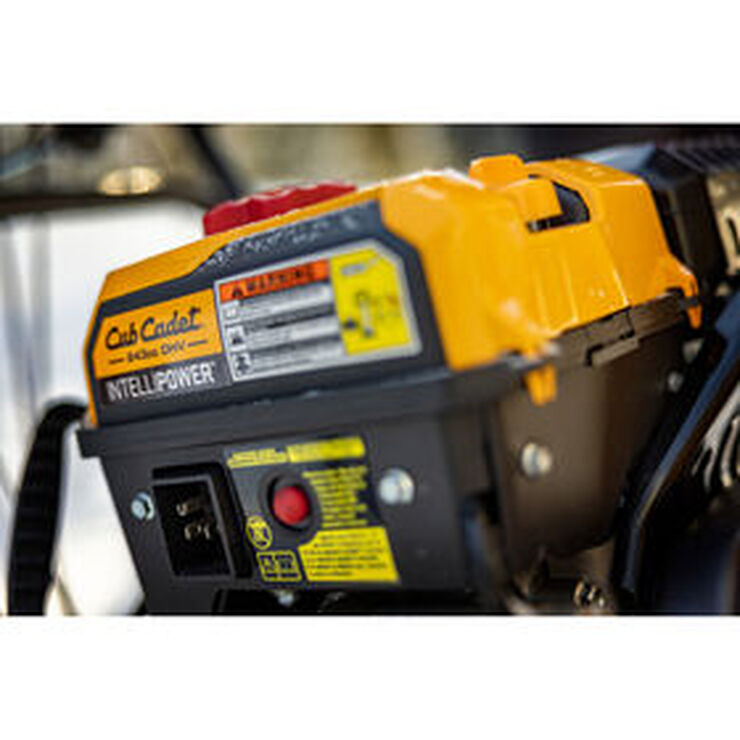

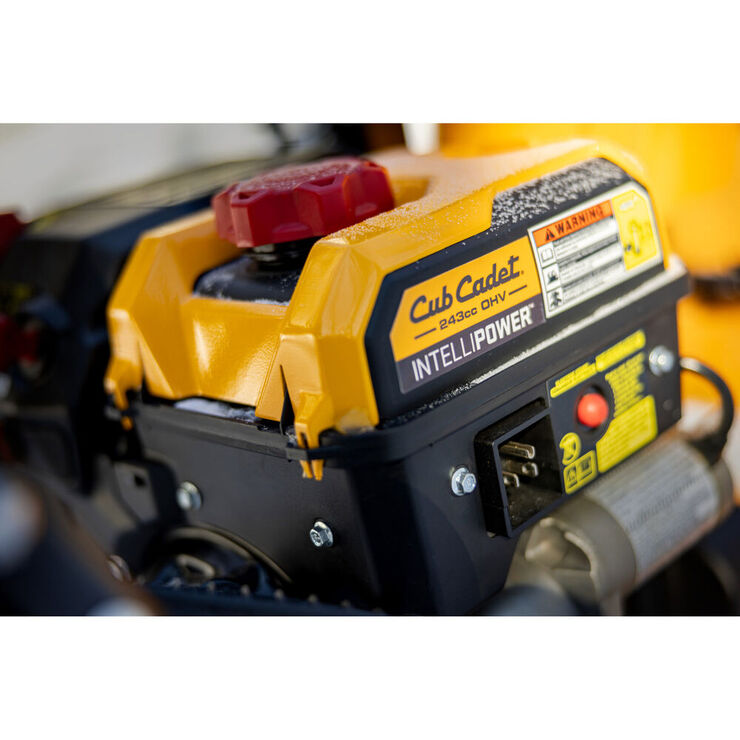

- 243cc 4-cycle OHV Cub Cadet IntelliPOWER® engine delivers the power to help clear snow on driveways up to 12 parking spaces in size
- IntelliPOWER® technology is engineered to deliver consistent power in heavy, deep, and wet snow conditions by automatically optimizing engine output to help provide smooth and consistent performance in challenging conditions.
- Trigger-controlled power steering and self-propelled drive for control, maneuverability, and single-hand operation.
- 15 in. x 5 in. X TRAC® tires help provide traction and mobility over snow*
You're shopping available inventory from
Vernon Dell Tractor
2871 BROADWAY,
GROVE CITY,
OH
43123
Delivering to:
43215
|
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days
Attachments & Accessories
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
![Shear Pin Kit, .25 x 1.5"](https://www.cubcadet.com/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dw7bb33f48/products/490-241-C063_1.jpg?sw=280&sh=280&sm=fit "Shear Pin Kit, .25 x 1.5"")
Ship to Home Available
2X™ 24" IntelliPOWER® Snow Blower Features
Easy Start Ups

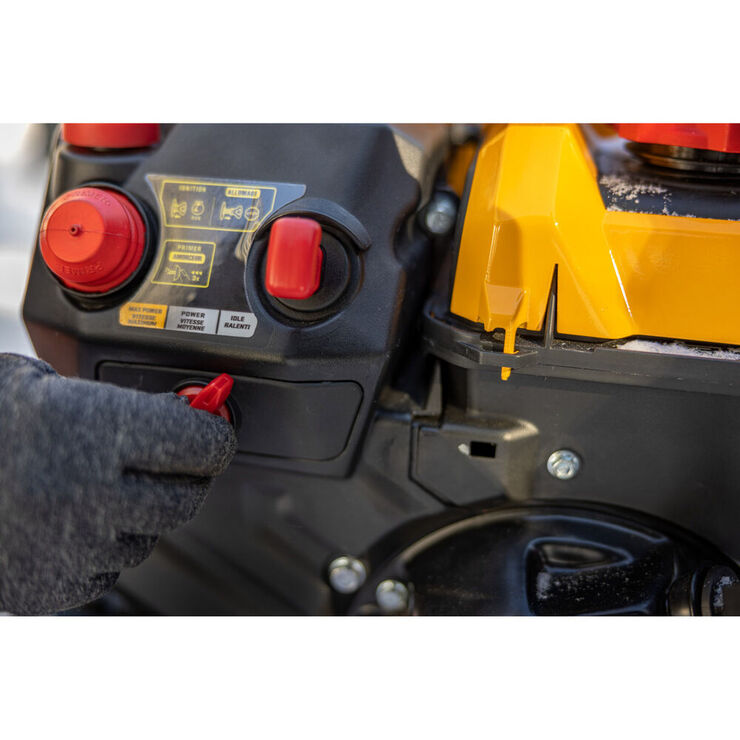

Start your engine at the push of a button when you need it most with electric start.
Strong Warranty
3-year limited residential and 1-year limited commercial warranty for peace of mind.
Work Longer
Work before dawn or after dark with dual LED headlights.
Xtrac® Tires**
Provide strong traction and mobility over snow.
Easy Pitch Control

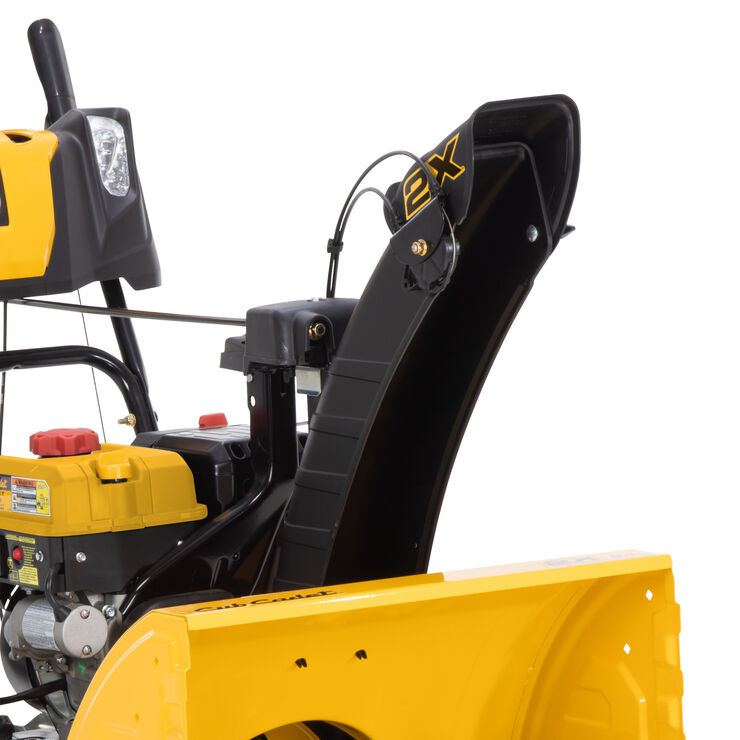

Change the pitch of the chute to throw snow up to 40-feet.
Redirect Snow
Rotate the chute a full 200° with just 2.5 turns of the crank.
More Engine Power
IntelliPower™ engine technology offers up to 18% more available power, resulting in less bogging down when clearing heavy, wet and deep snow.*
Better Maneuverability
Reversible Polymer skid shoes glide along surfaces for better maneuverability and won’t rust or leave marks on your driveway.
Effortless Control
Trigger-controlled power steering and self-propelled drive for unmatched control, effortless maneuverability and single-hand operation.
Specs & Maintenance
Engine
- Engine Brand Cub Cadet®
- Engine Model Number 875-WU
- Engine Displacement 243cc
- Fuel Tank Capacity 2 quarts US / 1.9 L
- Engine Start Recoil and Push-Button Electric
- Governor Electronic
- Fuel Delivery Carburetor
Drive System
- Number of Forward Speeds 6
- Number of Reverse Speeds 2
- Drive Type Friction Disc
- Drive System All-wheel Drive
Controls
- Handle Grip(s) Standard
- Chute Rotation Control Remote Overhead Crank
- Chute Pitch Control Remote Single-Lever
- Chute Rotation 200°
- Single-Hand Operation Standard
- Steering Control Trigger-Controlled Power Steering
Power and Performance
- Clearing Width 24"
- Intake Height 21"
- Auger Gear Box Heavy-duty cast-aluminum
- Number of Stages Two
Dimensions
- Auger Diameter 12"
- Impeller Diameter 12"
- Accelerator Diameter N/A
Specifications
- Tire Size 15" x 5"
- Tread Xtrac®
Additional Specifications
- Headlight(s) Dual LED
- Shave Plate Heavy Duty Steel
- Skid Shoes Reversible Poly
- Drift Cutters No
- Auger Material Serrated Steel
- Chute Material High-impact Polymer
- Model Number 31AM5HVRB10
Warranty
- Auger Gearbox Warranty 3-year limited
- Residential Warranty 3-year limited residential
- Commercial Warranty 1-year limited
- Chute Warranty 3-year limited
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Snow Removal †Results may vary depending on weather and snow conditions
- Xtrac® Tires **Xtrac® is a registered trademark of the Carlstar Group, LLC
Deluxe Snow Thrower Cab Installation
TRICKS AND TIPS
Protect yourself from the elements while you are clearing your driveway with a snow thrower cab. Follow these simple step for installing your cab on your Cub Cadet Two-Stage snow thrower.
How to Prepare Your Snow Blower for Storage in the Off-Season
MAINTENANCE
Learn how to properly retire your snow thrower for the season with these helpful snow blower storage and maintenance ideas from Cub Cadet.
How to Prepare Your Snow Blower for Winter
MAINTENANCE
Prepare your snow blower for use this winter with snow thrower maintenance tips from Cub Cadet. Our snow blower tips will help ensure your machine is
Maintenance Schedule & Tips
MAINTENANCE
Keep your snow blower in good condition with snow thrower maintenance from Cub Cadet. Proper snow thrower maintenance is essential when you're
Recommended Snow Thrower Back-Up Parts
TRICKS AND TIPS
Learn how to replace your Cub Cadet walk-behind lawn mower wheel with this simple five-step guide.
Snow Thrower Safety Tips
SAFETY
Use a snow blower or snow thrower to keep your paved drive and walkways snow-free during the winter months. With snowblower safety tips and operation advice from Cub Cadet, you'll have your driveway cleared of snow in no
Model | Manual | Form Number | |
|---|---|---|---|
| 31AM5HVRB10 | MANL:OPER:31X:500/600/800:NA | ||
| MANL:OPER:31X:500/600/800:NA | 769-26795 | Download | |
| MANL:OPER:BILING:179/208/272/2 | 769-26507 | Download | |
| MANL:OPER:BILING:179/208/272/2 | 769-26924 | Download | |
| SHEET:SUP:31CUB_SNOWBLOWERS:1X | 769-26938 | Download | |
| SHEET:SUP:31X2X-3X:CUB:US_CA | 769-26490 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-26611 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download |
