XT1 LT42
XT ENDURO SERIES
Item#:
13AOA9CS056
Best Seller
MSRP
Best Seller
XT1 LT42
XT ENDURO SERIES
Item#:
13AOA9CS056
MSRP
Documents and Guides

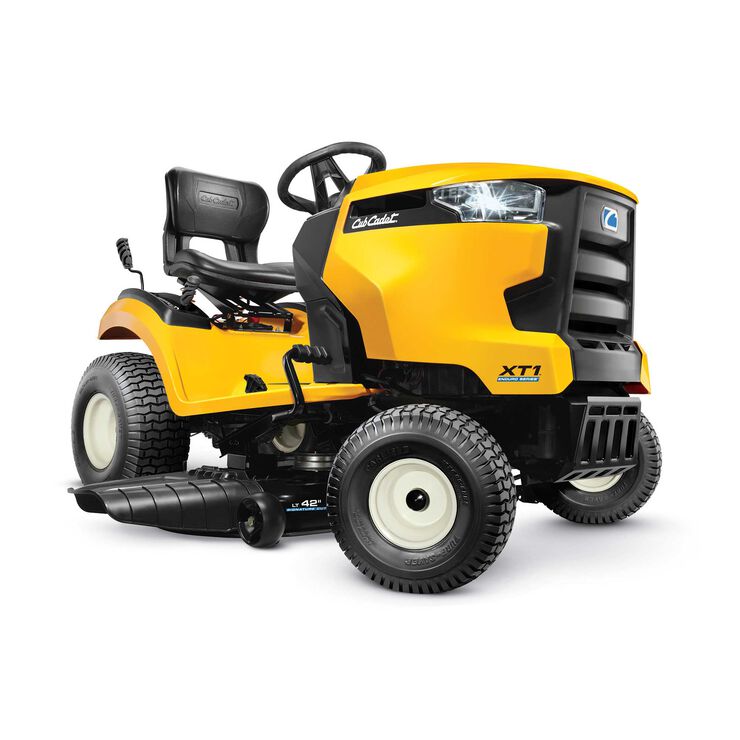

- The Cub Cadet XT1 LT42 is powered by a Kohler single cylinder 541 cc engine
- 42-inch stamped, 13-gauge, twin-blade deck with 12 cutting positions.
- Equipped with an optimized steering system for responsive handling to give a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
- Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.
- Tuff Torq foot controlled hydrostatic transmission, no shifting - just push the pedal and go
You're shopping available inventory from
Vernon Dell Tractor
2871 BROADWAY,
GROVE CITY,
OH
43123
Delivering to:
43215
|
Availability:
The selected dealer can not sell this item
Delivery in
Pick up in
Ships in
8-10 days
Availability:
The selected dealer can not sell this item
Delivery in
Pick up in
Ships in
8-10 days
XT1 LT42 Features
Incredibly Responsive Handling
Optimized command and control at every turn with hydrostatic transmissions. No more shifting. Just push the pedal and go.
Advanced Cutting Performance
A muscular cutting system featuring stamped and fabricated cutting deck options that deliver an unprecedented level of bagging performance.
Versatility
The XT1 lawn tractors are engineered to support a wide variety of attachments for all-season versatility.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 5400 Series
- Engine Model Number KS540
- Engine Displacement 541cc
- Engine Output 18HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Single
- Engine Start Ignition Key
- Engine Oil Capacity 1.8 qt. US (1.7 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq® TL-200
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 3 MPH / 4.8 KMH
- Rear Axle 3/4"
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Aluminum
- Engine to Transmission Heavy-duty belt
- Rear Differential Lock No
Cutting Deck
- Deck Cutting Width 42 in
- Deck Wash Yes
- Deck Material 13-gauge steel
- Deck Engagement (PTO) Manual lever
- Deck Construction Stamped
- Blade(s) Two
- Deck Lift Hand lever with spring-assist
- Cutting Height Range 1" - 4"
- Anti-Scalping Two gauge wheels
- Deck Positions 12
Chassis
- Frame Robotically welded
- Turning Radius 16"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type 15" high-back
- Armrests No
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
Specifications
- Series XT1® Enduro Series™
Additional Specifications
- Mulch Kit Available Separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13AOA9CS056
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty 5-year unlimited hours
- Front Axle Warranty 5-year unlimited hours
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 13AOA9CS056 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738A | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-23211A | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-23211B | Download |
