XT1 LT42
XT1 ENDURO SERIES
Item#:
13A8A9CS596
MSRP
XT1 LT42
XT1 ENDURO SERIES
Item#:
13A8A9CS596

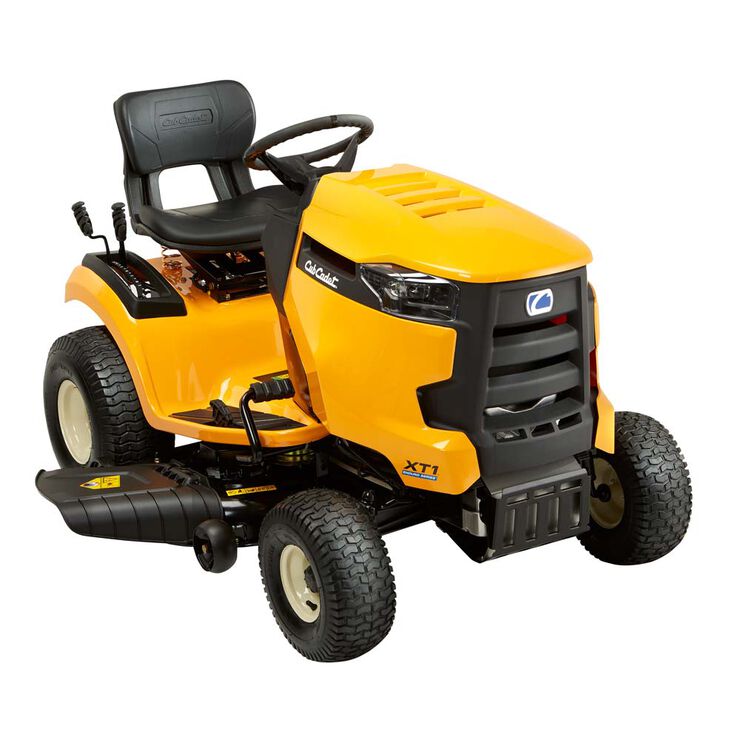

This Cub Cadet riding mower offers advanced cutting performance, exceptional corrosion protection, as well as an adjustable seat. The cruise control function and the high-back seat makes for a comfortable ride and the 42-inch cutting deck helps to get the job done quickly. Equipped with a powerful 547cc Cub Cadet engine. High rear tires offer great traction while the side discharge and deck wash-out ports make for easy cleaning.
- The Cub Cadet XT1 LT42 is powered by a 547cc Cub Cadet Engine
- 42-inch stamped, 13-gauge, twin-blade deck with 12 cutting positions
- 3-Year Limited Warranty
- Equipped with an optimized steering system for responsive handling to give a 16-inch turn radius a zero-turn feel
- Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles
- Tuff Torq foot controlled hydrostatic transmission, no shifting - just push the pedal and go
eDealerList : [{"dealerID":"13866","eDealerProximity":8.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":17.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":26.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
eDealerList : [{"dealerID":"13866","eDealerProximity":8.9,"deliveryRadius":"0,499.99,39,0|500,999.99,89,0|1000,1999.99,129,0|2000,2499.99,149,10|2500,4999.99,149,10|5000,999999,149,10"},{"dealerID":"9023","eDealerProximity":17.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"},{"dealerID":"9024","eDealerProximity":26.5,"deliveryRadius":"0,499.99,39,10|500,999.99,89,15|1000,1999.99,129,20|2000,2499.99,149,25|2500,4999.99,149,25|5000,999999,149,25"}]
Why is There a Fee for Pick-Up?
Local pick-up fee is to account for full white glove product set-up & assembly by an Authorized Cub Cadet Dealer.
XT1 LT42 Features
Incredibly Responsive Handling
Optimized command and control at every turn with hydrostatic transmissions. No more shifting. Just push the pedal and go.
Advanced Cutting Performance

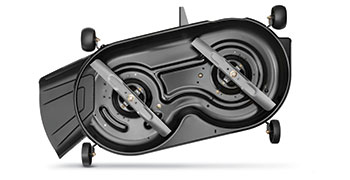

A muscular cutting system featuring stamped and fabricated cutting deck options that deliver an unprecedented level of bagging performance.
Corrosion Defense System
A multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear.
Versatility
The XT1 lawn tractors are engineered to support a wide variety of attachments for all-season versatility.
Specs & Maintenance
Engine
- Engine Brand Cub Cadet®
- Engine Model OHV
- Engine Model Number 4X90HUB
- Engine Displacement 547cc
- Engine Output N/A
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Single
- Engine Start Ignition Key
- Engine Oil Capacity 1.8 qts. US (1.7 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro, Foot (Tuff Torq TL-200)
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 3 MPH / 4.8 KMH
- Rear Axle 3/4" w/dual PM steel drive hubs
- Drive System Hydrostatic
- Transmission Housing Cast aluminum
- Engine to Transmission Heavy-duty belt
Cutting Deck
- Deck Cutting Width 42 in
- Deck Wash Yes
- Deck Material 13-gauge steel
- Deck Engagement (PTO) Manual
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Manual
- Cutting Height Range 1" - 4"
- Anti-Scalping 2 gauge wheels
- Deck Positions 12
Chassis
- Frame Robotically welded
- Front Axle Heavy-duty cast-iron
- Turning Radius 16"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control Yes
- Brakes Disc
Comfort

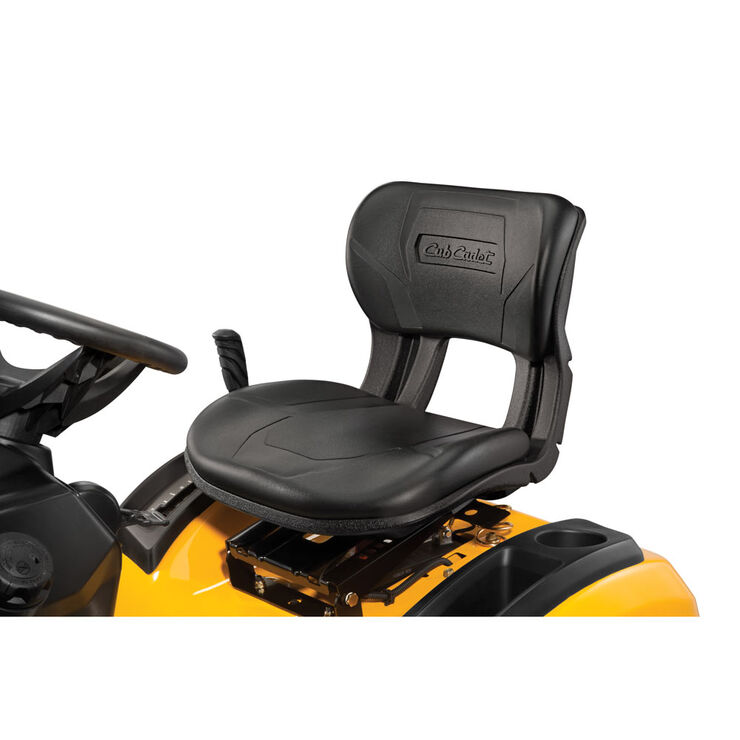

- Seat Type 15" High-back
- Armrests No
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Rear Tires 20" x 8" -8”
- Front Tires 15"x6"-6"
- Tire Tread Turf Saver
Additional Specifications
- Mulch Kit Available separately
- Headlight(s) Dual LED
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13A8A9CS596
Warranty
- Residential Warranty 3-year Unlimited Hours (Includes Powertrain)
- Frame Warranty 5-year limited
- Front Axle Warranty 5-year / unlimited hour
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 13A8A9CS596 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738A | Download | |
| MAN:OPER:TRILING:NX15 | 769-20951A | Download | |
| MAN:OWNR:ENG:MTD:547CC:CAN | 769-18712 | Download | |
| MANL:OPER:BILING:547cc:MTD ENG | 769-25330 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-17172 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-25882 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-23211 | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-23211A | Download | |
| SHEET:SUPP:WARR/PARTS:CDN:CC N | 769-25924 | Download | |
| SHEET:SUPP:WARR/PARTS:CDN:CC N | 769-25924B | Download |
