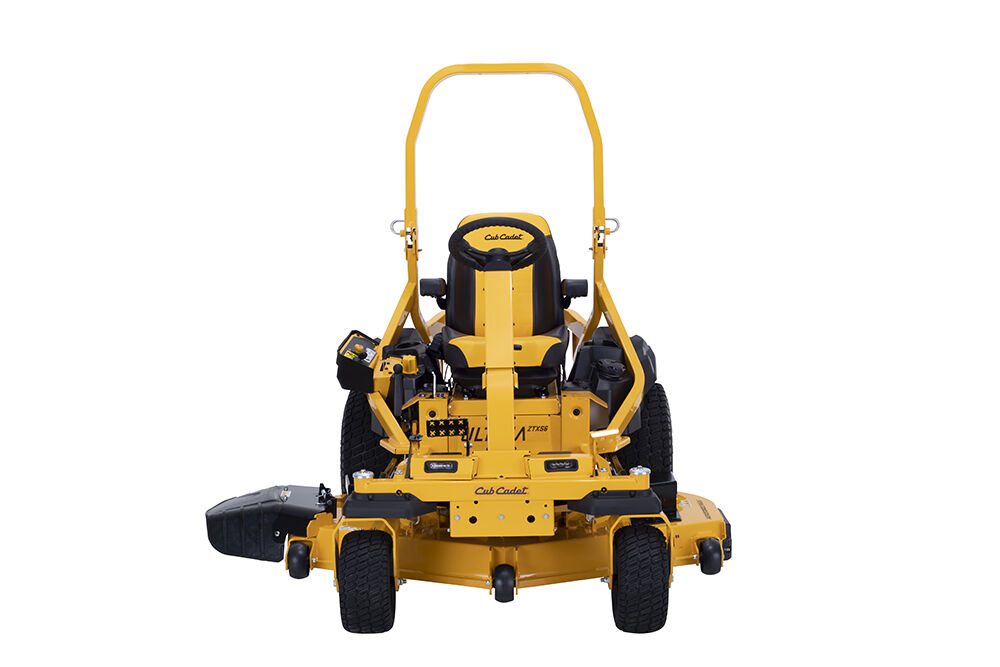

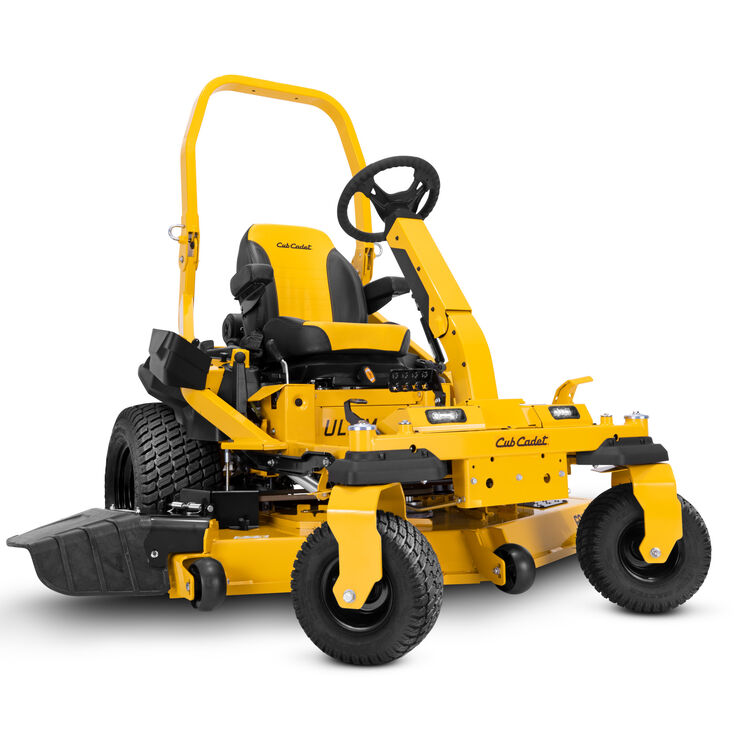

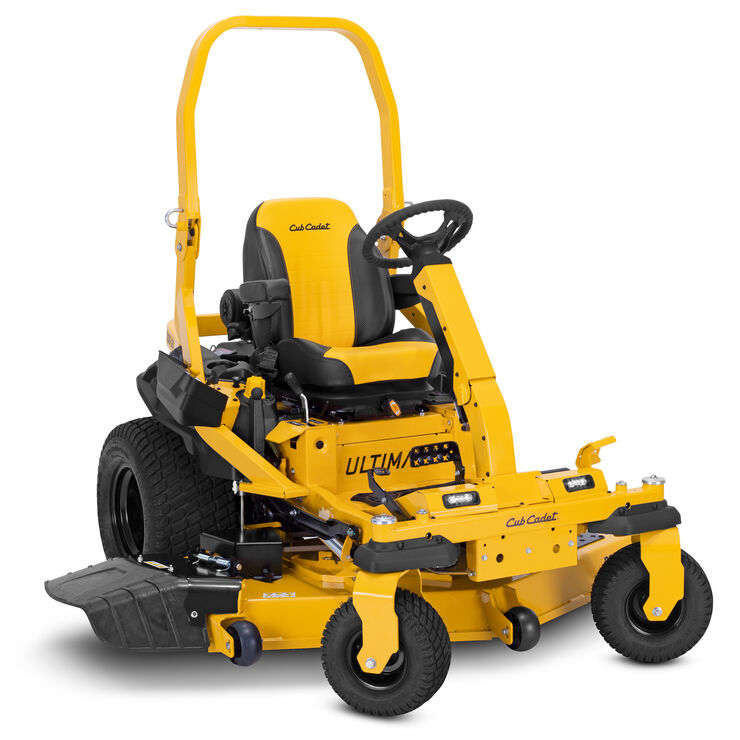

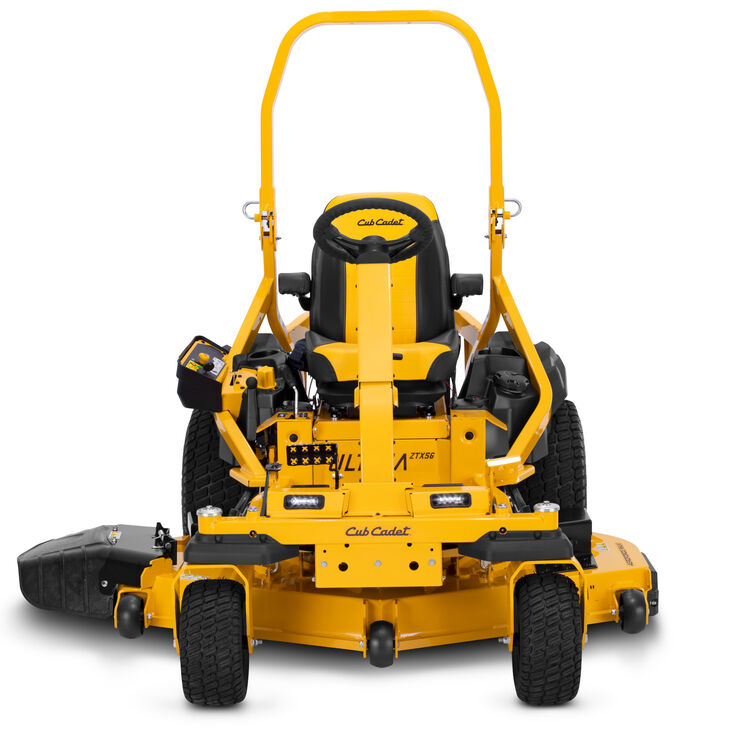

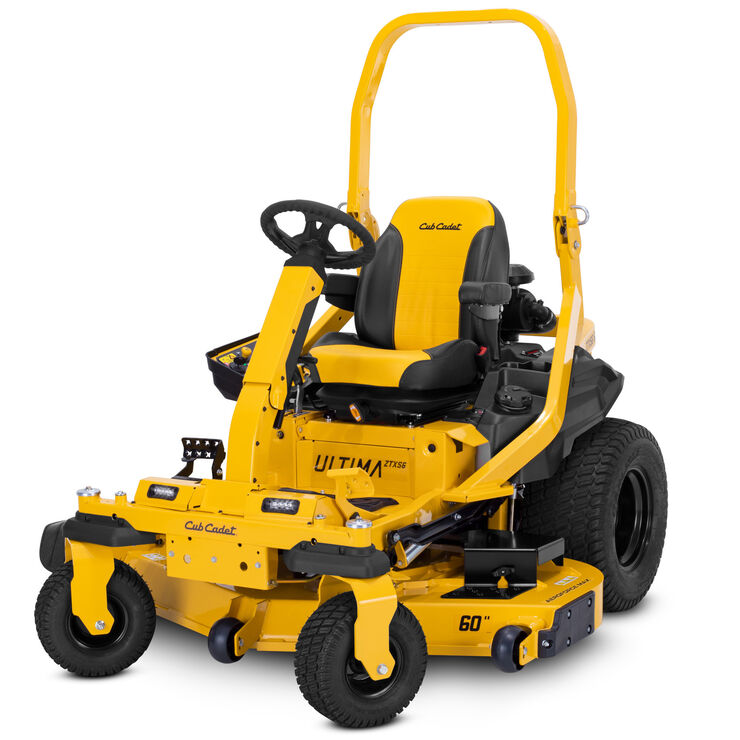

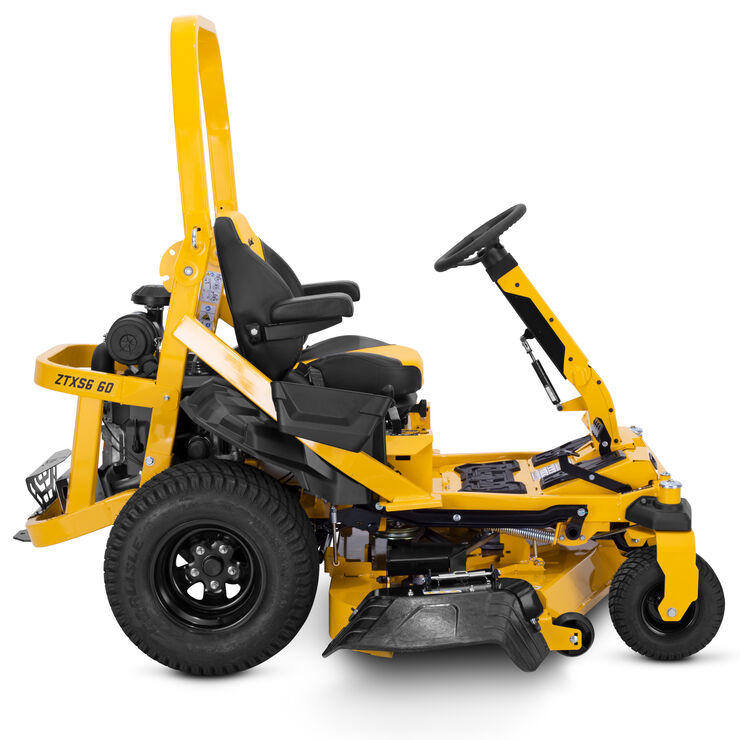

ZTXS6 60
Ultima Series™ ZTXS
Item#:
47RICHB8A10
New For 2023
From
$10,299.00
MSRP
New For 2023
ZTXS6 60
Ultima Series™ ZTXS
Item#:
47RICHB8A10
From
$10,299.00
MSRP
Documents and Guides
- Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
- A 25.5 HP* Kawasaki FX801 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear
You're shopping available inventory from
Browning Equipment, Inc.
800 EAST MAIN STREET,
PURCELLVILLE,
VA
20132
Delivering to:
20149
|
ZTXS6 60 Features

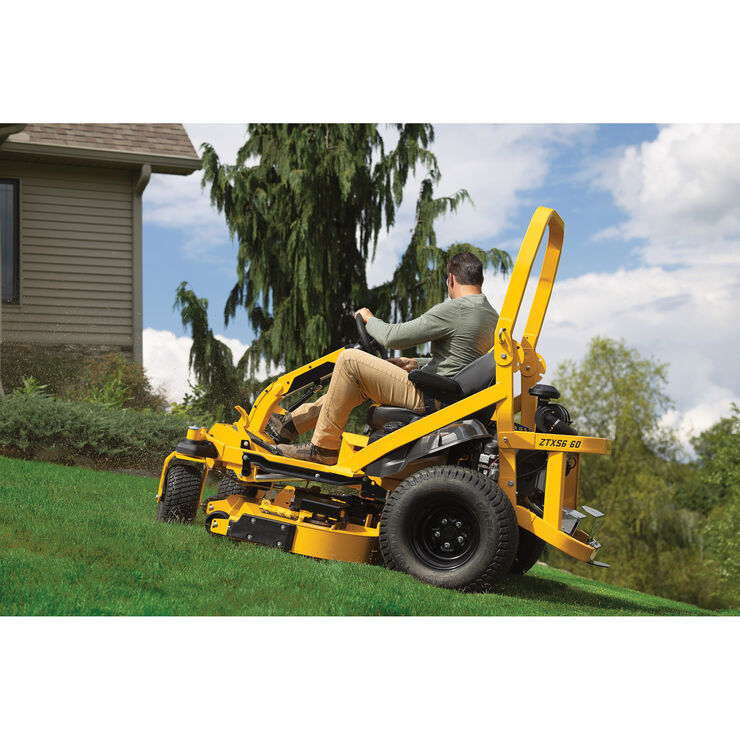

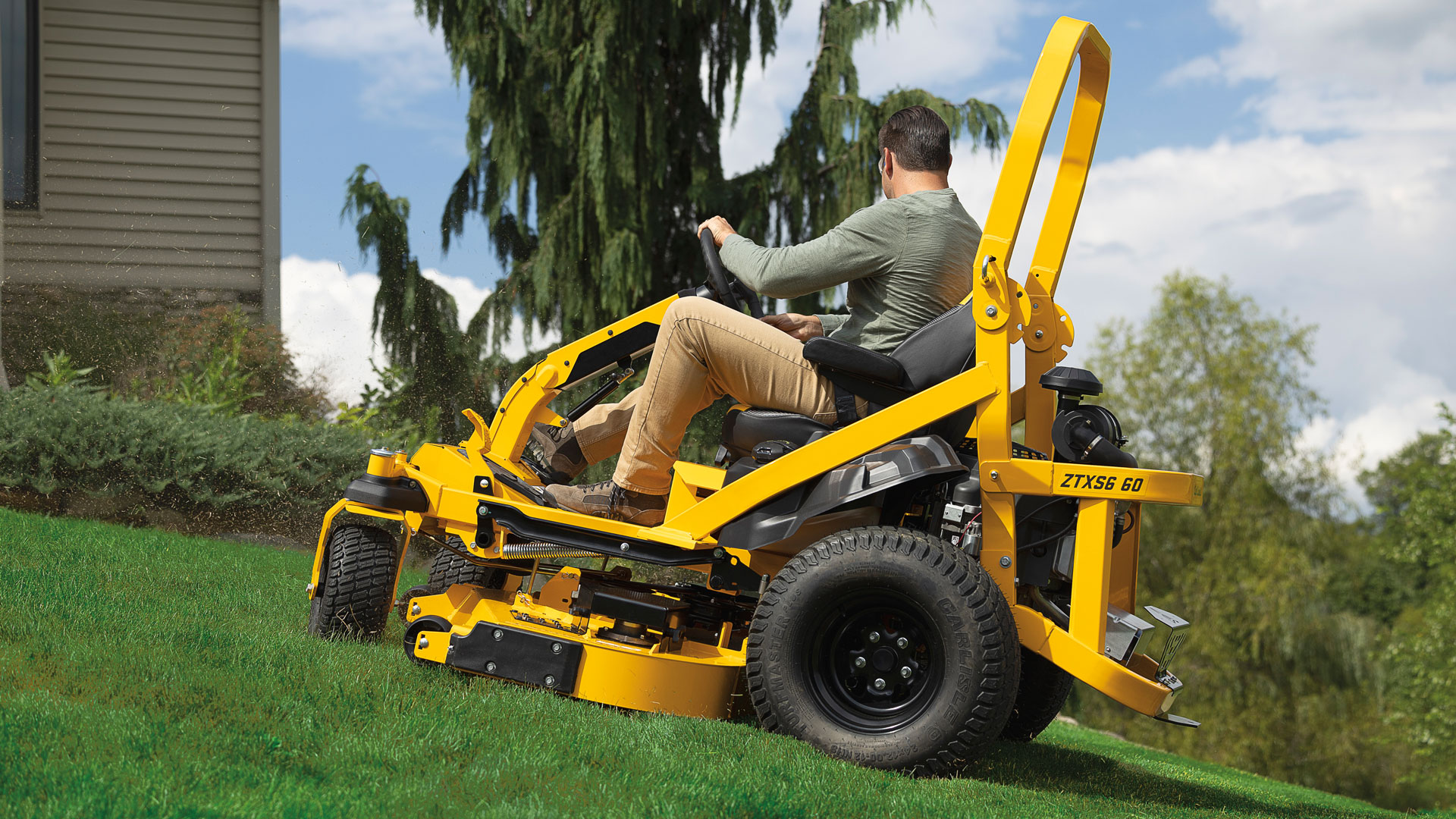

Excellent Stability On Hills
Synchro-Steer™ technology delivers four-wheel control, providing straight-line mowing on hillsides and slopes up to 20-degrees

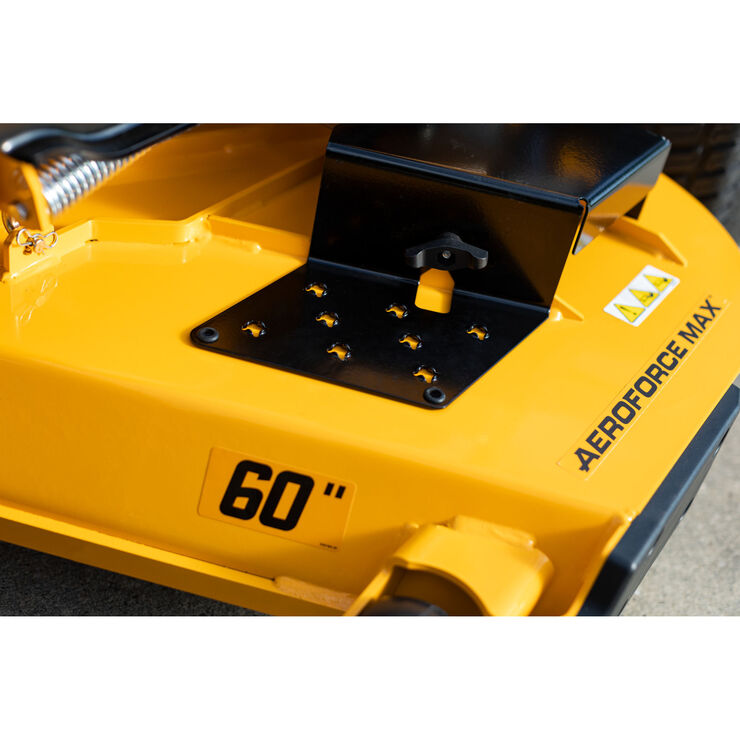

Premium Cut
AeroForce™ Max reinforced fabricated steel cutting decks designed to deliver high quality results and mow a wide area of grass to help minimize cutting time.

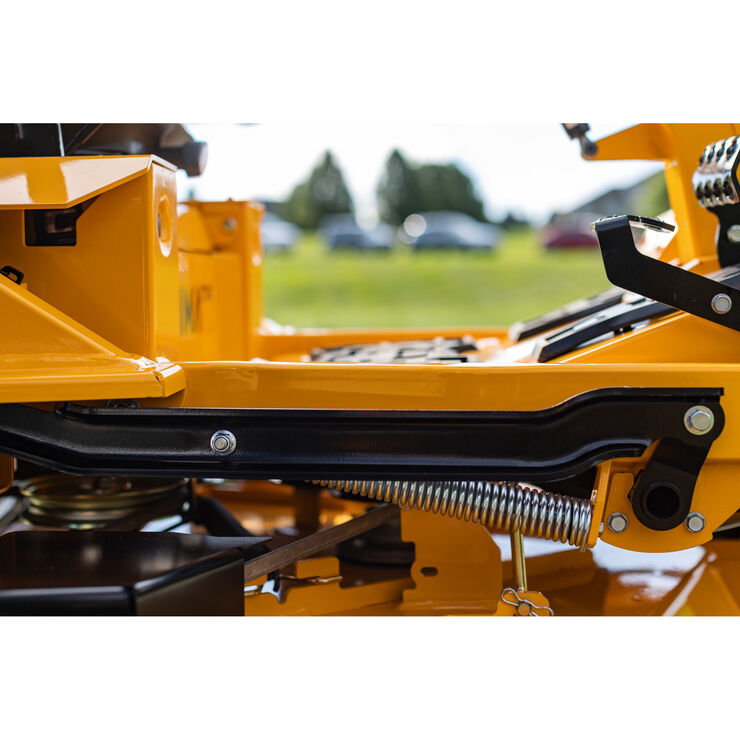

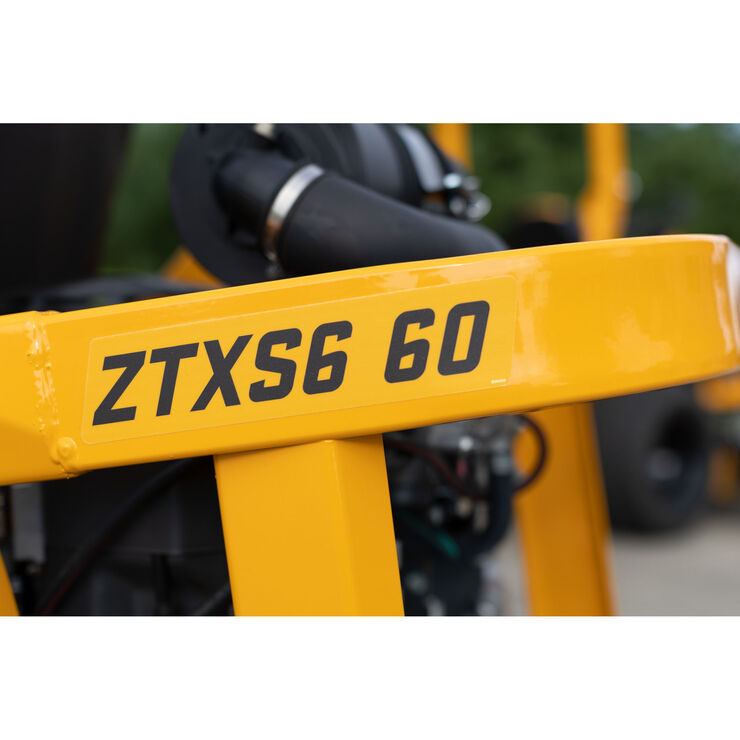

Strong, Durable Frame
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system helps protect against wear and tear
High Performance Power
Strong Kawasaki® engines deliver high-performance power to tackle long, demanding jobs

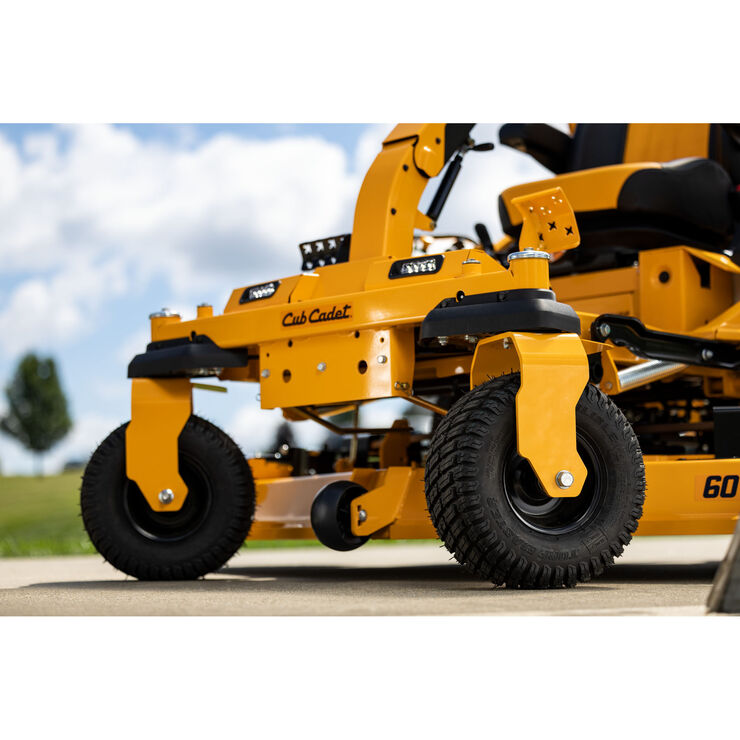

Turf Master® Tires
Turf Master® tires designed to help minimize turfing and provide traction and stability on hills.

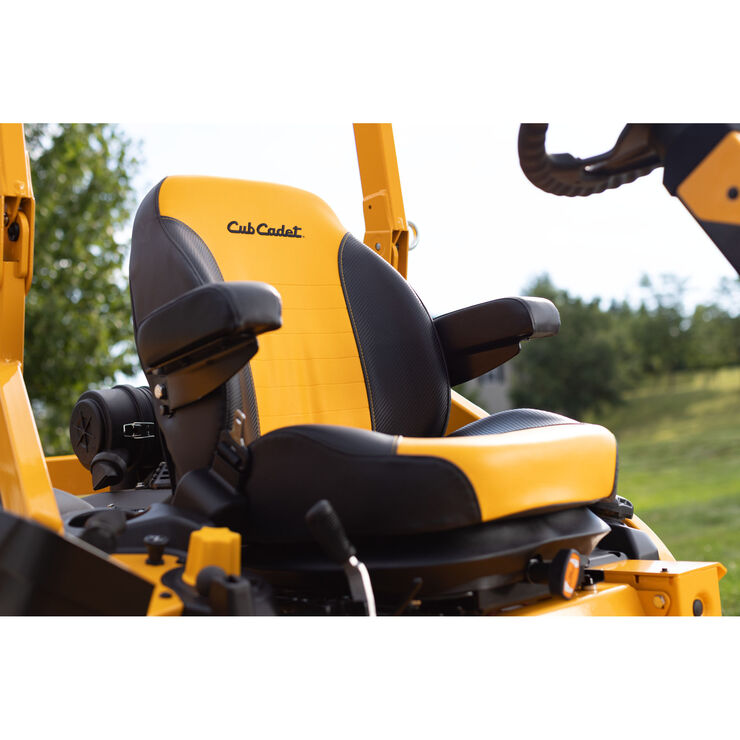

Ride In Comfort

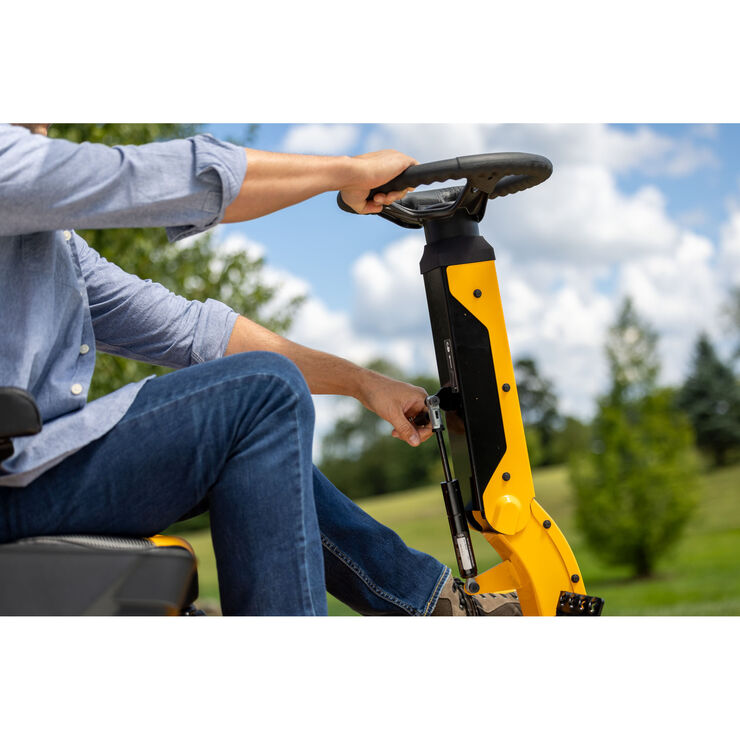

SoftTouch steering wheel and an adjustable steering column that tilts for easy steering and great handling on hills and uneven terrain.
Customize Your Machine
Unlock the full potential of your Ultima ZTXS with a variety of attachments and accessories (sold separately).

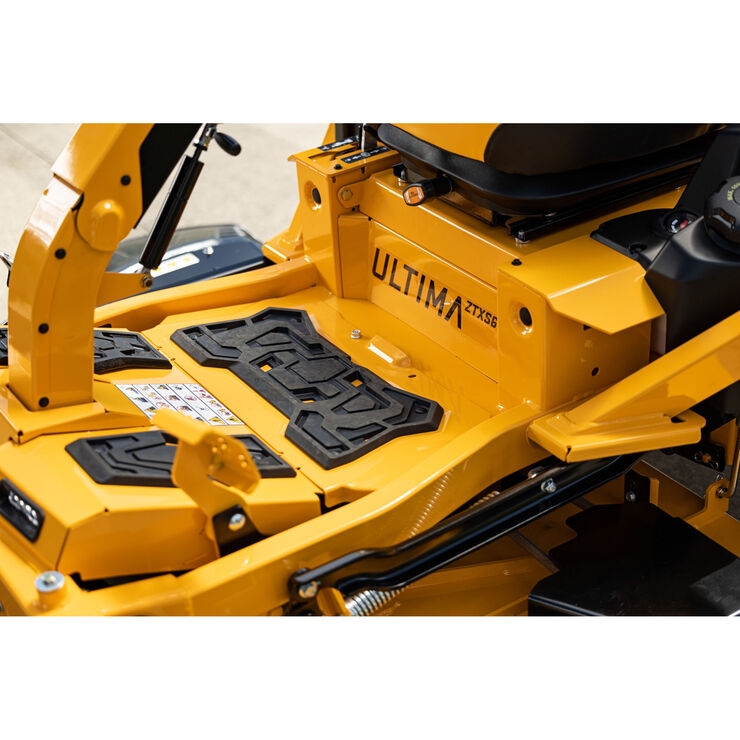

Easy Maintenance
An open frame design and hinged/removable floor pan allow easy access to the deck and engine for easy maintenance
Strong Warranty
4-year/800-hour limited product warranty, lifetime limited frame and fabricated deck shell warranty for the ultimate peace of mind
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 801V
- Engine Displacement 852cc
- Engine Output 25.5HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 gal. US (20.82 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge Yes
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 3400 Charged
- Forward Speed 9 MPH / 14.5 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three

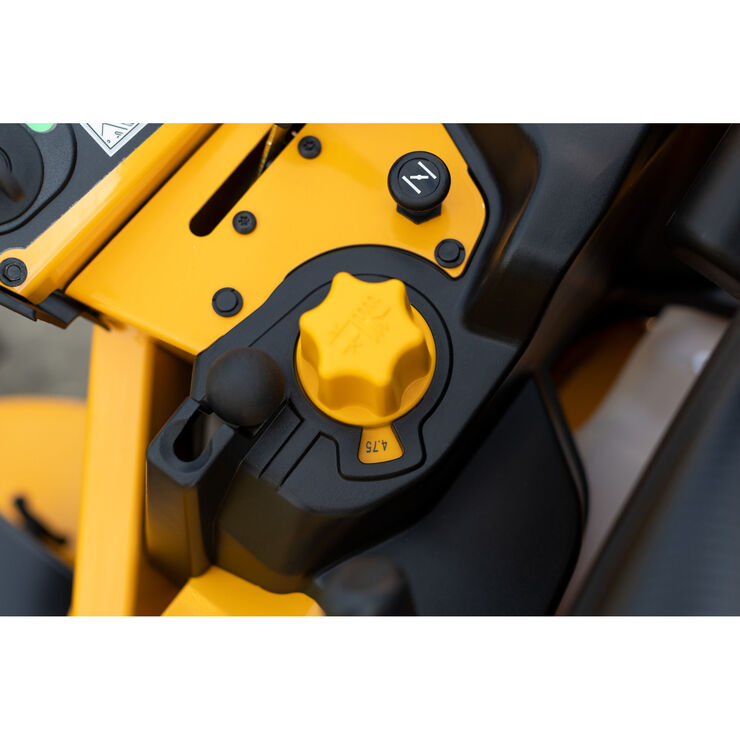

- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping Three gauge wheels
- Deck Positions 17
Chassis
- Frame 1.5" x 3" tubular steel
- Turning Radius 0°
- ROPS Yes
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
Comfort

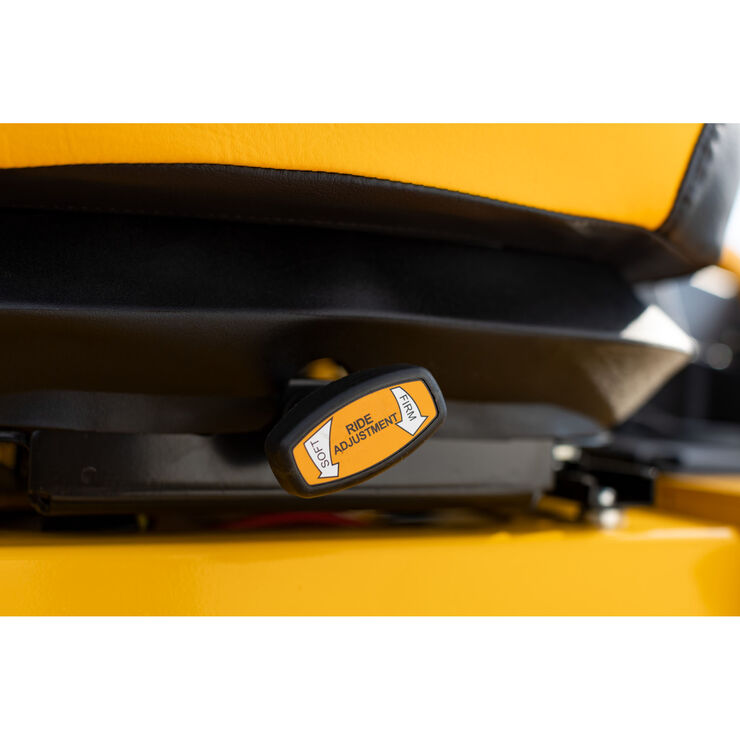

- Seat Type 24" high back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 24"x 12"-12"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZTXS
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes

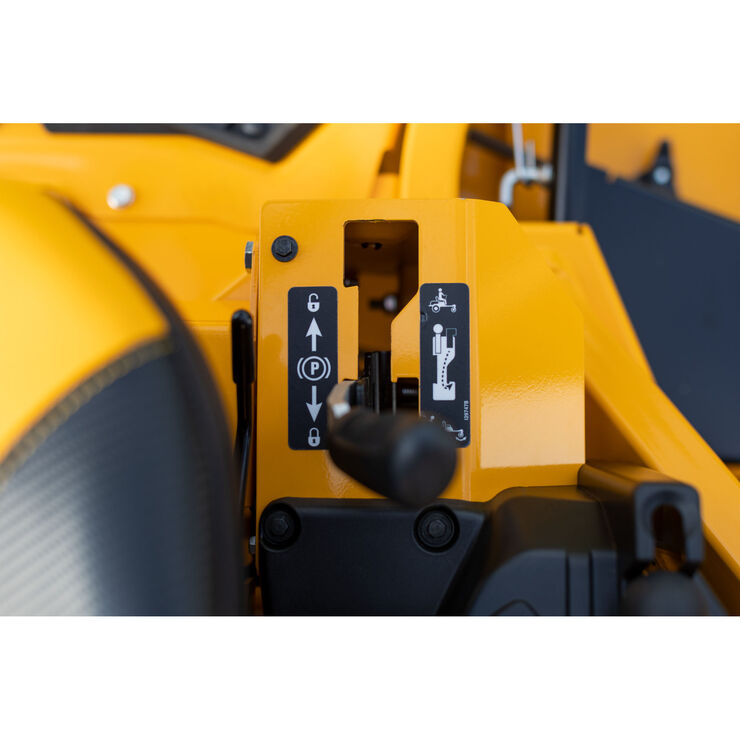

- Parking Brake Foot Controlled
- Model Number 47RICHB8A10
Warranty
- Warranty 4-year 800 hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty 4-year 800 hours
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 47RICHB8A10 | MANL:OPER:TRI:ZTXS | ||
| MANL:OPER:TRI:ZTXS | 769-26660 | Download | |
| MANL:OPER:TRI:ZTXS | 769-26660A | Download | |
| SHEET:SAFETYSYMBOL:ZTXS | 769-26858 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26696 | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26696A | Download | |
| SHEET:SUPP:WARR/PARTS:ENG/SP/F | 769-26932 | Download |
