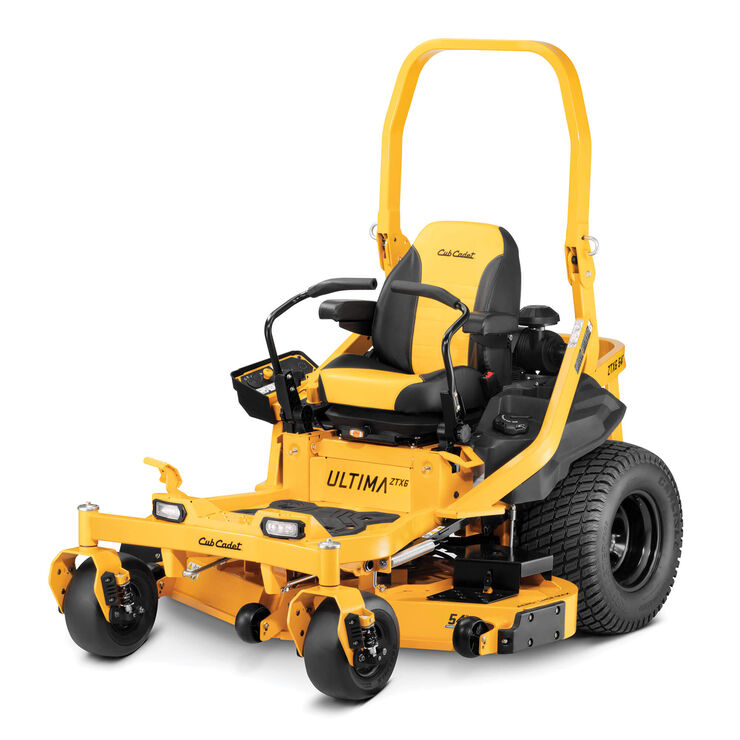

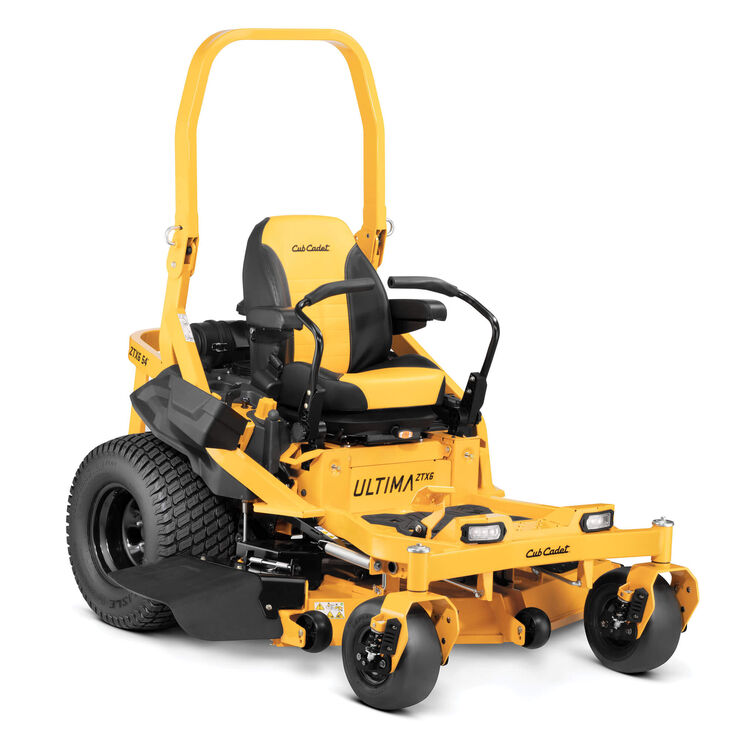

ZTX6 54
Documents and Guides
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Commercial-grade 25.5 HP Kawasaki(R) FX801 V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3400 hydrostatic rear-wheel transmissions for quick and effortless up to 9 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
- Four-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
- Ideal for 4-10 acres with slightly rolling hills and several obstacles
You're shopping available inventory from

ZTX6 54 Features

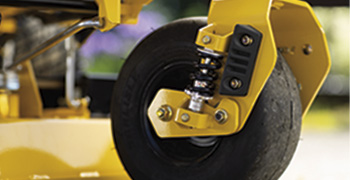

Front Suspension

Independent suspension caster wheels deliver a smooth ride with less vibration on challenging mowing terrains.
Quick-Adjust Lap Bars

No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.
Enhanced Traction

Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Rugged Frame

A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.
AeroForce Max™

A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Dual LED Headlights

LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Reduced Vibration

Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easy Maintenance

Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Hydro-Gear™ ZT 3400 Transmissions

Dual hydrostatic transmissions allows you to reach speeds of up to 9 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Adjustable Suspension Seat

A 24” premium high-back seat, cushioned armrests and dial adjustable suspension system allows you to adjust to your weight for a smoother ride.
Advanced Grass Collection

The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 801V
- Engine Displacement 852cc
- Engine Output 25.5HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 gal. US (20.82 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge Yes
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead-Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 3400 Charged
- Forward Speed 9 MPH / 14.5 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping Three gauge wheels
- Deck Positions 17
Warranty
- Warranty 4-year 800 hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty 4-year 800 hours
Chassis
- Frame 1.5" x 3" tubular steel
- Turning Radius 0°
- ROPS Yes
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 24" high back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 24"x 12"-12"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 47RIAHA7010
Specifications
- Series Ultima Series™ ZTX
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
