- 24 HP 725cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
- Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
- A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
- 60 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provide flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut
You're shopping available inventory from

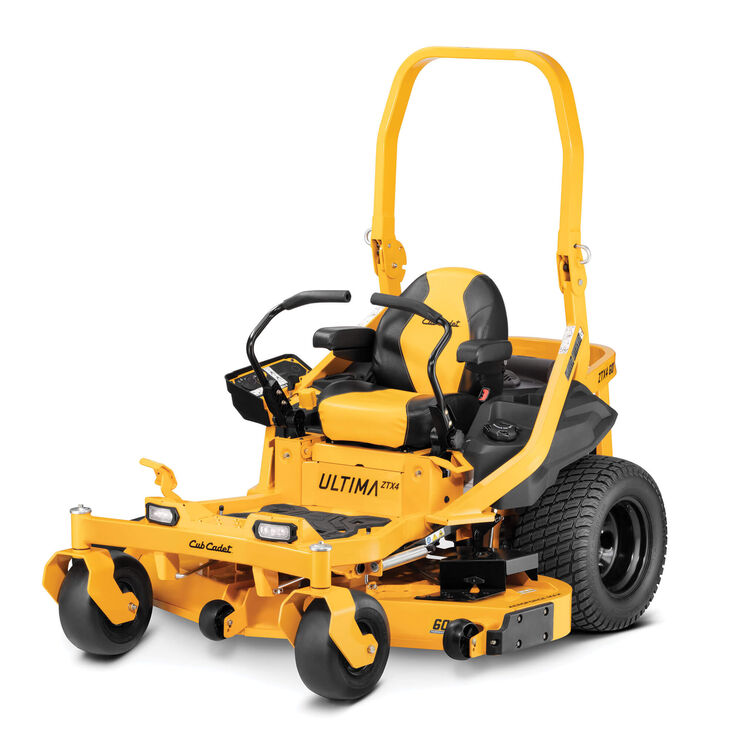

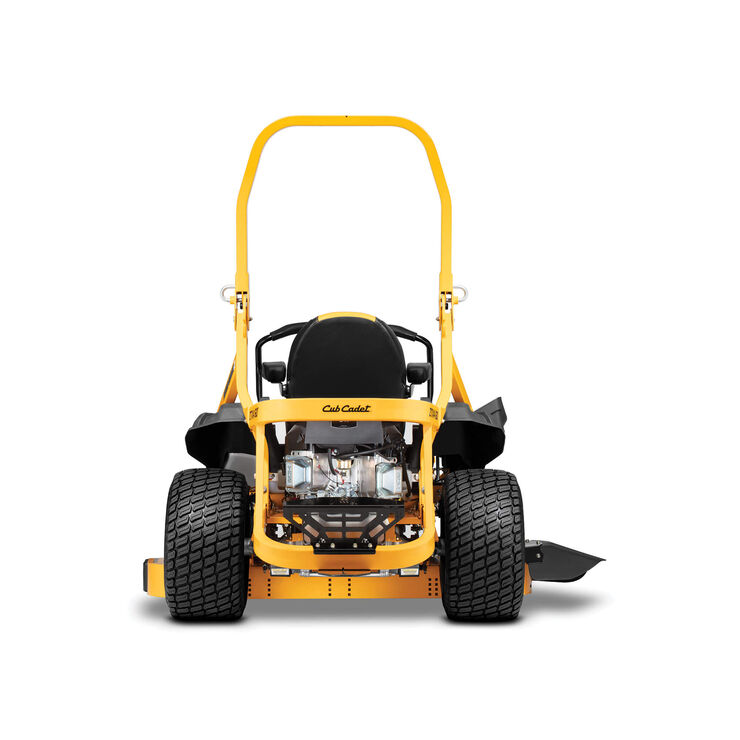

ZTX4 60 Features

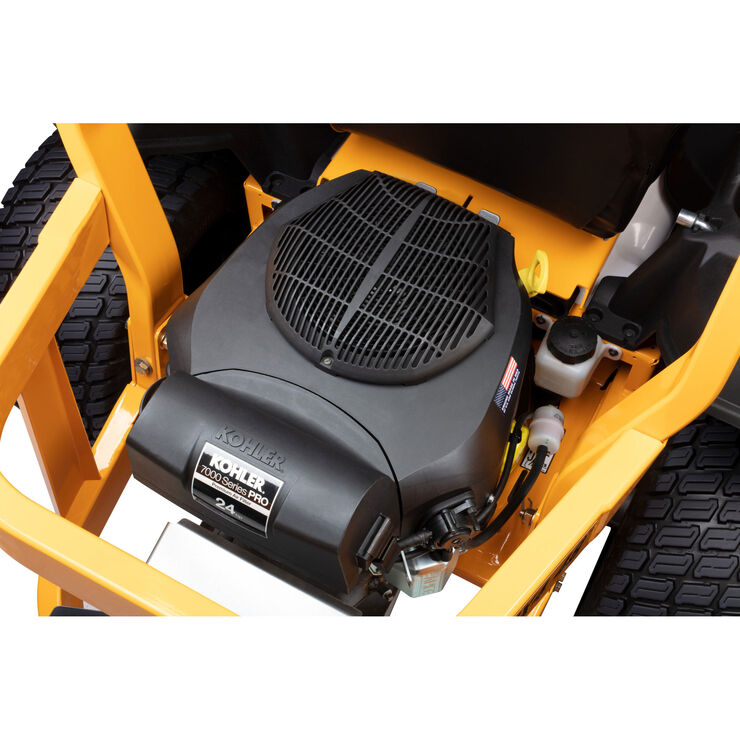

Kohler 7000 Series PRO Engine
Smoother operation, better acceleration and seamless recovery powered by a reliable twin-cylinder Kohler engine.
A rugged 1.5 x 3-inch tubular steel frame provides the strength needed for long-lasting use.

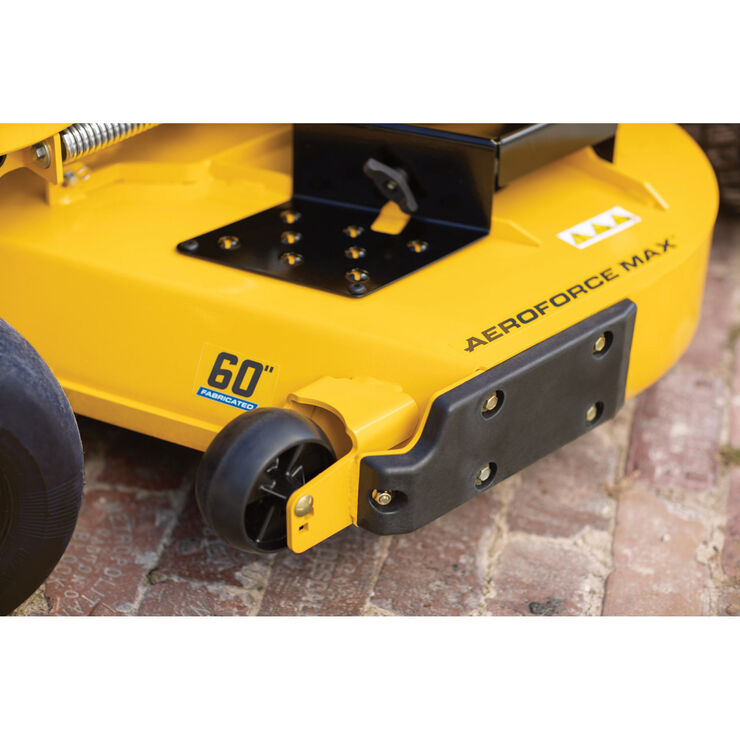

A 10-gauge steel fabricated AeroForce Max™ deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Hydro-Gear™ ZT 3100 Transmissions
Dual hydrostatic transmissions allows you to reach speeds of up to 8 mph (3.5 mph in reverse) while providing effortless control and a smooth, zero-turn radius for the perfect pass.
Large Turf Master rear tires provide enhanced traction on uneven terrain with minimal grass damage
Quick-Adjust Lap Bars
No tools needed to quickly adjust your zero-turn’s lap bars for your comfort or for different operators.

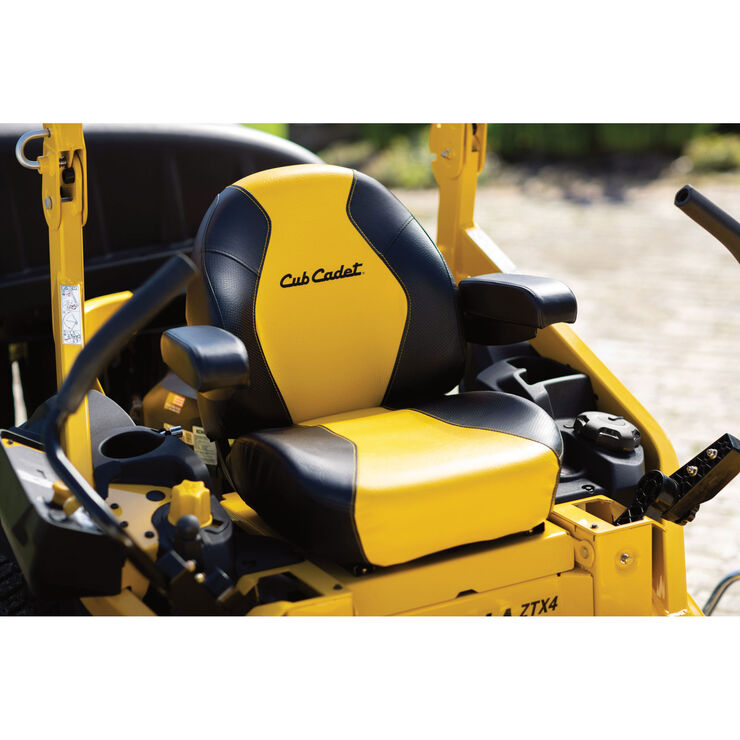

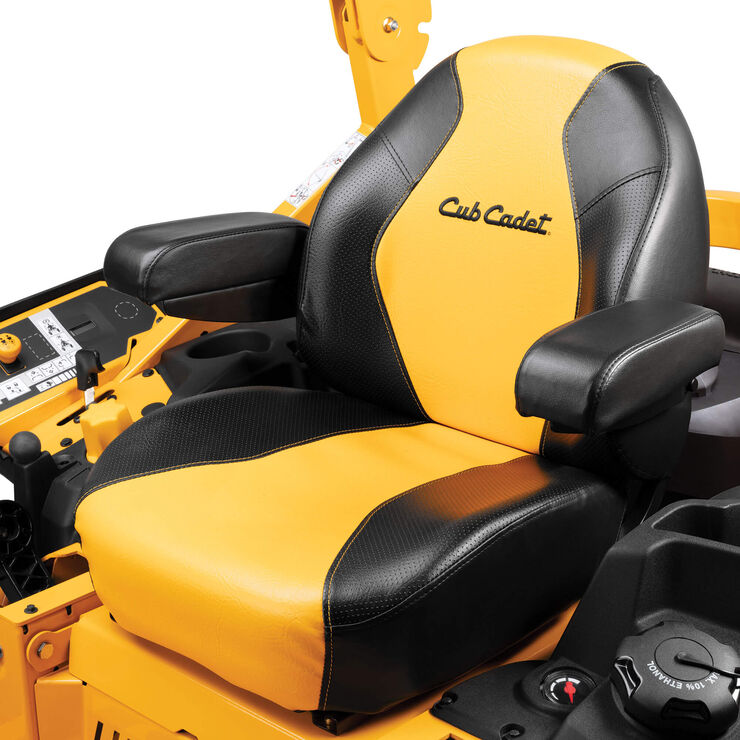

A 20” premium high-back seat, cushioned armrests and a suspension system with polymer set isolators deliver a smoother ride than traditional seat springs.
Dual LED Headlights
LED headlights come standard on every Ultima Series ZTX™, allowing you to see clearer in low-visibility conditions.
Mow in comfort with overmolded soft-touch hand grips and a rubber floor mat designed to reduce vibration and user fatigue.
Easily access the cutting deck pulleys and belts during maintenance and service intervals.
Advanced Grass Collection
The AeroForce Max™ deck top discharge allows for superior flow of grass through the large 9" diameter boot, directly up into the larger capacity bags.
Specs & Maintenance
- Engine Brand Kohler®
- Engine Model Pro 7000 series
- Engine Model Number KT735
- Engine Displacement 725cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 5.5 US gal. / 20.80 L
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
- Transmission Hydro-Gear™ ZT3100™
- Forward Speed 8 MPH / 12.9 KMH
- Reverse Speed 3.5 mph / 5.6 km/h
- Drive System Hydrostatic
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 10-gauge steel with 2-gauge reinforcement
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1" - 4.75"
- Anti-Scalping Three gauge wheels
- Deck Positions 17
- Frame 1.5" x 3" tubular steel
- Turning Radius 0°
- ROPS Yes
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
- Seat Type 20" high back
- Armrests Yes
- Seat Adjustment Lever
- Rear Tires 22"x12"-12"
- Front Tires 13"x6.5"-6"
- Tire Tread Turf Master/Multi Trac
- Series Ultima Series™ ZTX
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 47ASAAA8010
- Warranty 4-year 800 hours
- Frame Warranty Limited lifetime
- Deck Shell Warranty Lifetime limited
- Commercial Warranty 4-year 800 hours
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
