- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
- A 25 HP/725cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
- 60-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
You're shopping available inventory from

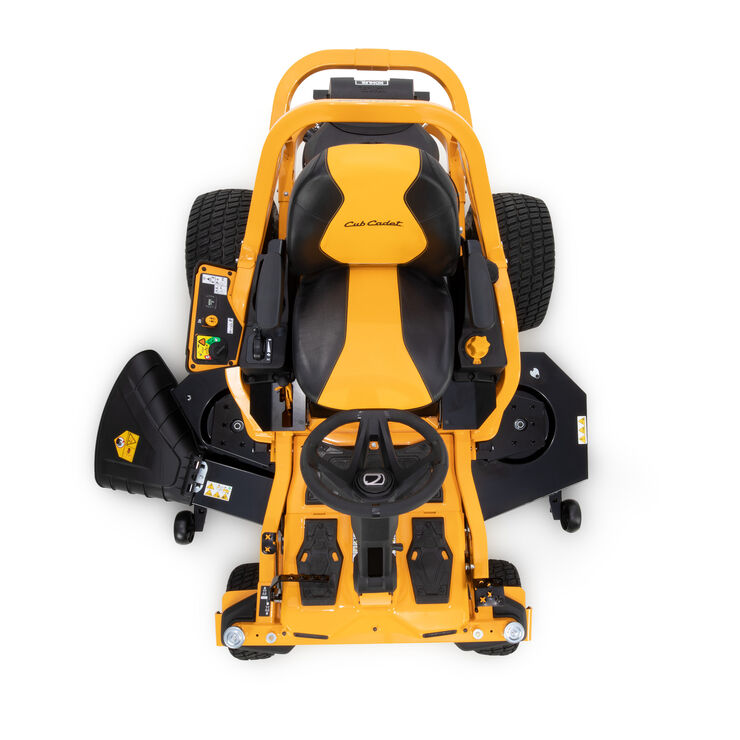

ZTS2 60 Features
Fully adjustable premium 20-in. high-back seat with armrests and an advanced polymer seat isolators deliver a smoother, quieter ride on any terrain.
Settle into a fully adjustable command center with a tilted steering column and adjustable seat that allows for you to mow comfortably at your top speed.

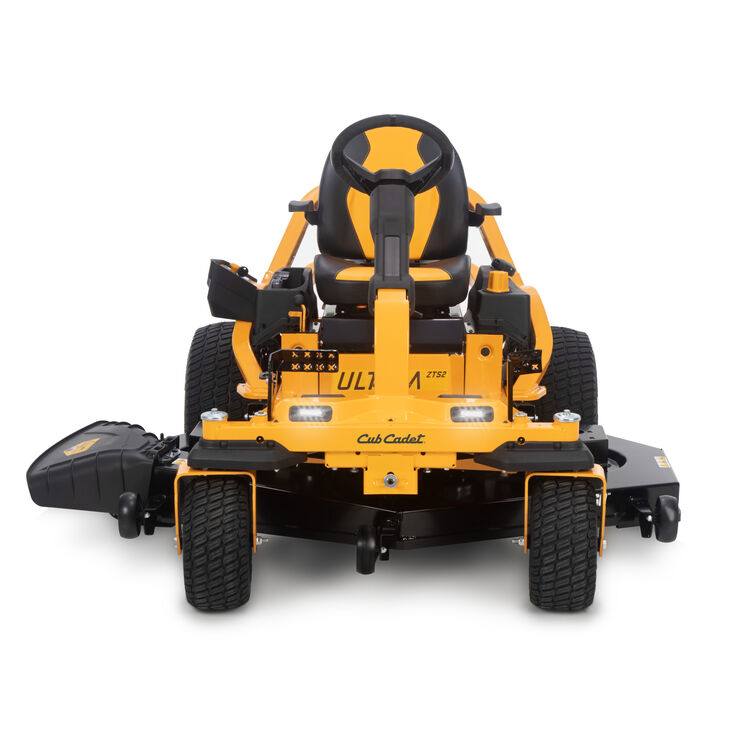

Headlights provide ultimate vision for mowing in low light conditions.
Synchro-Steer™ technology allows you to operate your Ultima ZTS with one hand while still mowing in a straight line for an even, consistent cut.
Stability on Hills
Snychro-Steer™ technology delivers unrivaled control and handling of all four wheels, even on hills and slopes of up to 20°.
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear.
Unlock the full potential of your Ultima ZTS with a variety of attachments and accessories.
13 in. front / 20 in. rear Turf Master® 4-ply tires minimize turf damage and provide greater traction and stability on 20° hills.
Fully fabricated deck delivers a best-in-class cut with fewer clumps and stragglers, finer clippings and increased evenness.
Backed by a 3-year no hour limit warranty, and lifetime limited frame and deck shell warranty.
Striping Made Easy
The Synchro Steer™ technology provides enhanced precision and control that will help you continually achieve a pristine cut on the most delicate turf to the most challenging terrain.
Soft-touch steering wheel and a vibration-dampening rubber floor mat provides sure footing and maximum comfort.

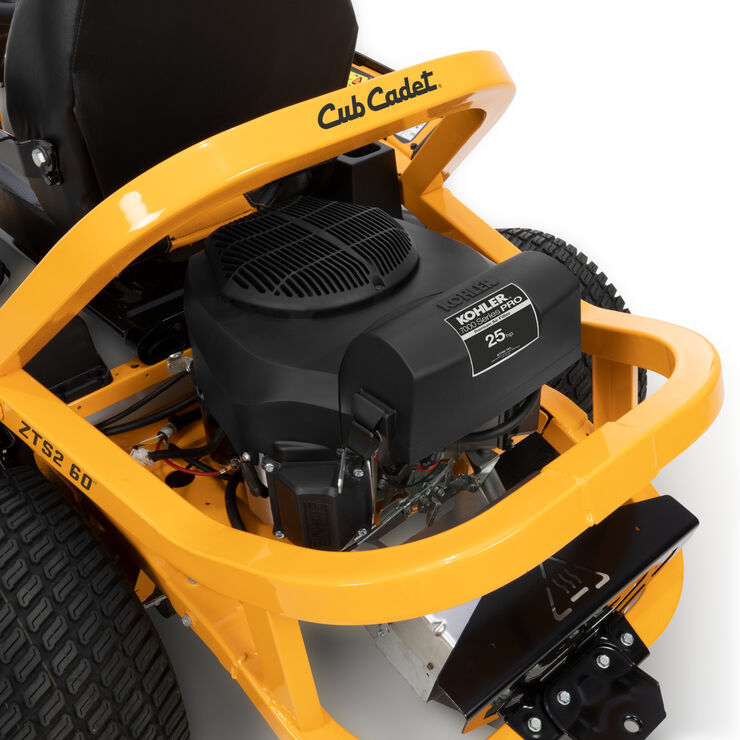

A Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and a smooth operation with a larger pro grade air filter that increases filtering capacity and reduces maintenance.
Specs & Maintenance
- Engine Brand Kohler®
- Engine Model 7000 Series PRO
- Engine Model Number KT740
- Engine Displacement 725cc
- Engine Output 25HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
- Transmission Hydro-Gear ZT 2800
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) 3
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 15
- Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime Limited
- Commercial Warranty No
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
- Seat Type 20" high back
- Armrests Yes
- Seat Adjustment Lever
- Rear Tires 20”x 12”-8"
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Hand Lever
- Model Number 17ASGGY5A10
- Series Ultima Series™ ZTS
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
