ZT3 60
Ultima Series™ ZT
Item#:
17AZEAC5A10
From
$5,599.00
$5,899.00
MSRP
ZT3 60
Ultima Series™ ZT
Item#:
17AZEAC5A10
From
$5,599.00
$5,899.00
MSRP

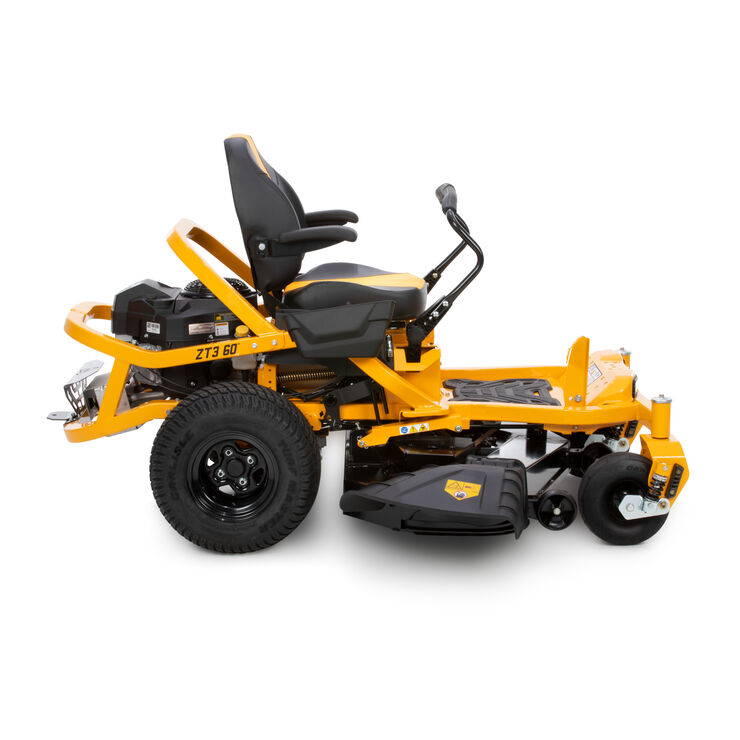

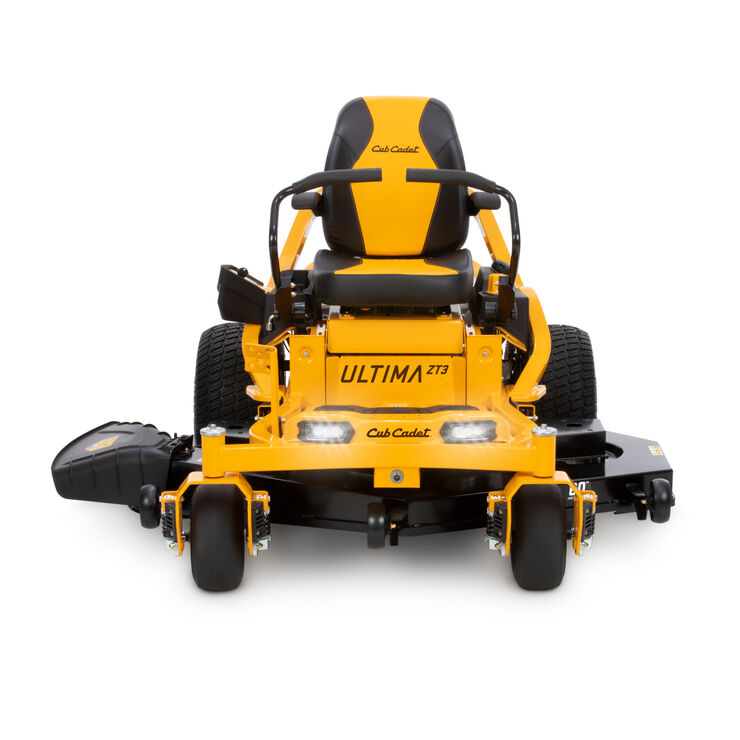

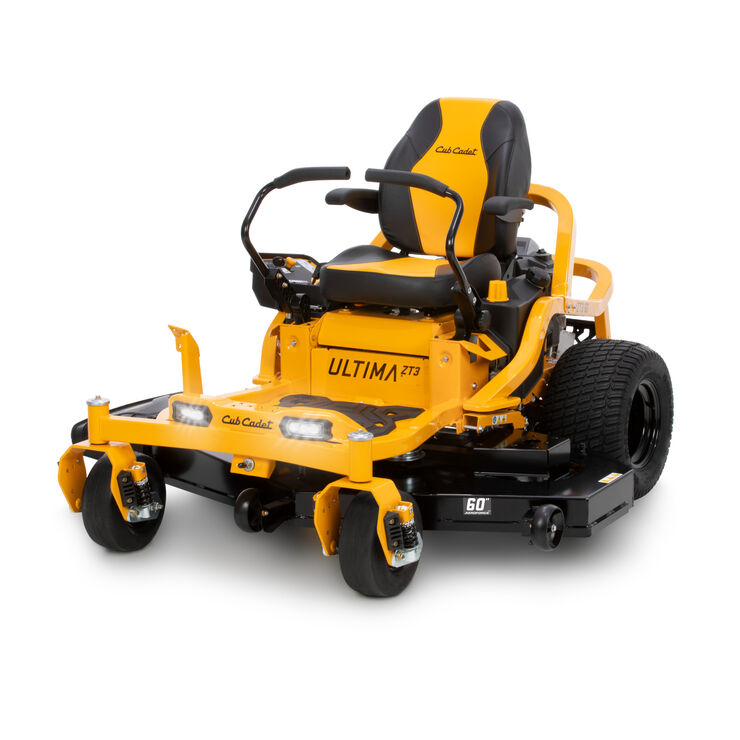

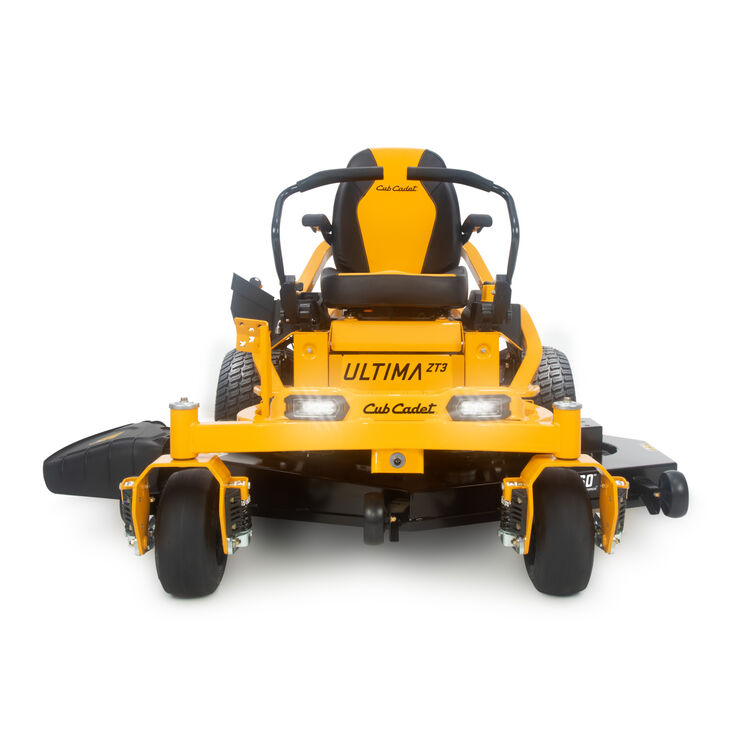

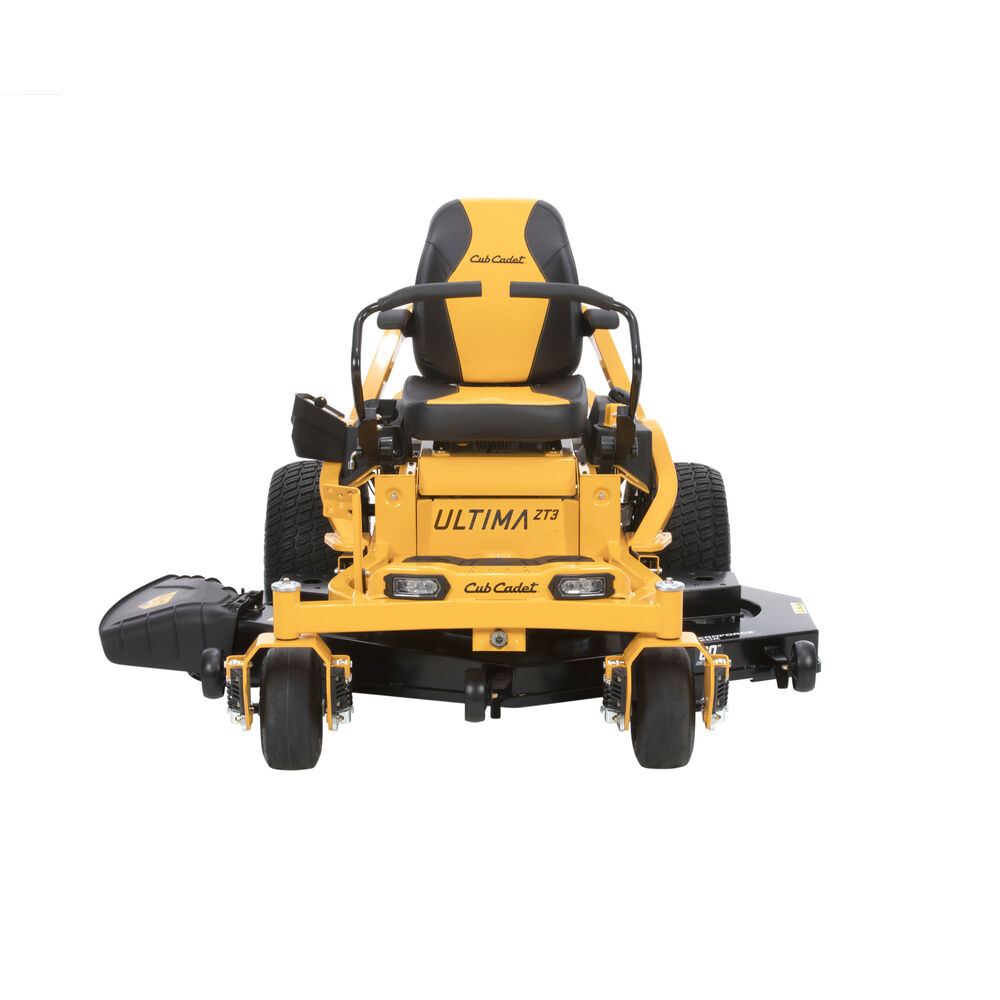

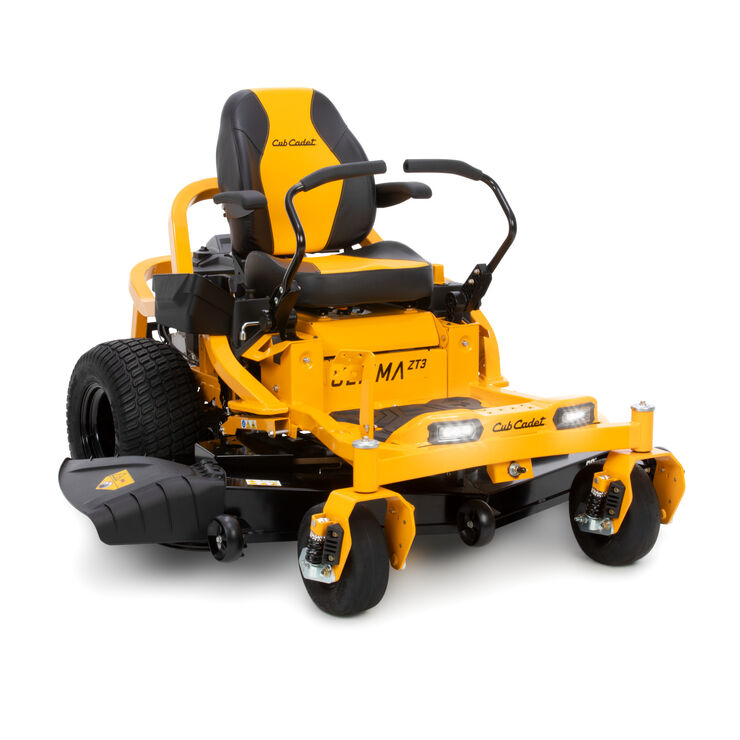

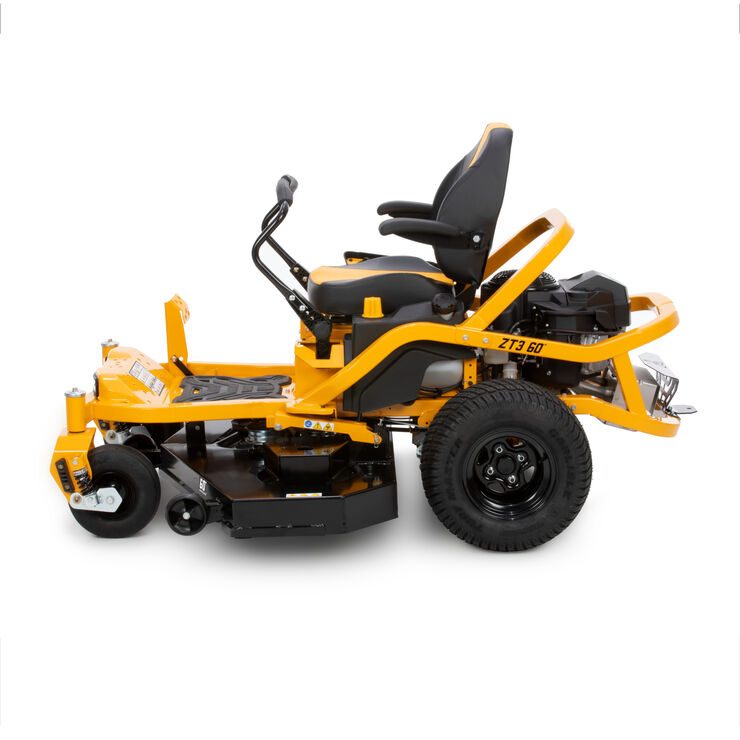

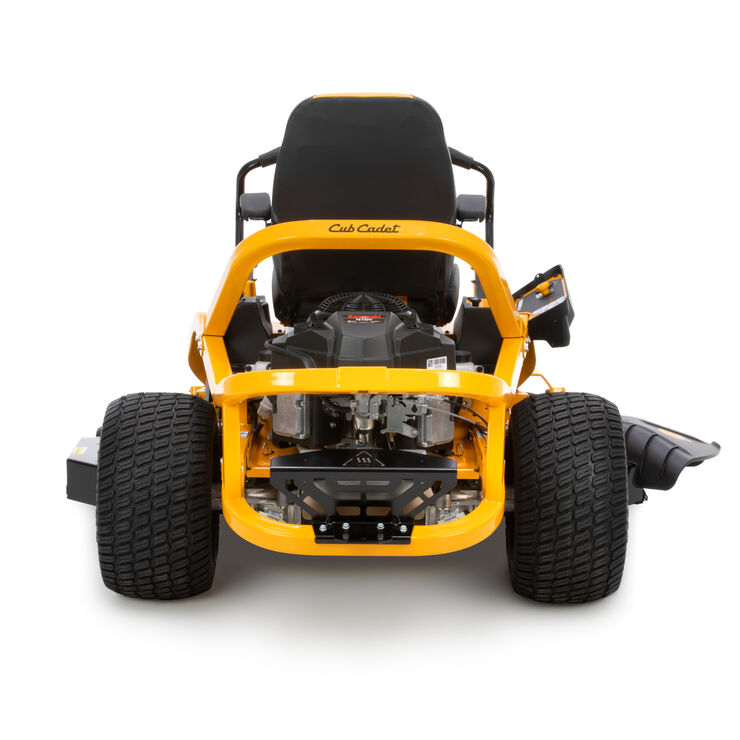

The Cub Cadet® Ultima Series ZT3 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.
Documents and Guides
- A premium 24 HP*/725cc Kawasaki FS730V twin-cylinder OHV engine, commercial-grade power that meets your yard's toughest demands
- Commercial-grade dual hydrostatic rear-wheel transmissions for quick and effortless 7.5 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
- Cut comfortably at your maximum speed with automotive-inspired, fully adjustable premium 24 in. high back seat with cushioned armrests, ball-bearing seat slide and advanced polymer seat isolators.
- 60-in. AeroForce fabricated deck with heavy-duty reinforced leading edges and cutting system that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
- Zero-Turn Mower
You're shopping available inventory from
Vernon Dell Tractor
2871 BROADWAY,
GROVE CITY,
OH
43123
Delivering to:
43215
|
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days
Availability:
Delivery in
8-10 days
Pick up in
6-8 days
Ships in
8-10 days
Attachments & Accessories
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
Ship to Home Available
ZT3 60 Features
Built with Strength
A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
Redefining Comfort
Settle in to a fully adjustable command center and experience next-level comfort designed for optimized speed and control from head to toe.
Comfort
The soft rubber floor mat provides sure footing, comfort and ample leg room. The hinged/removable floor pan provides easy access to the deck.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FS Series
- Engine Model Number 730V
- Engine Displacement 726cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq TZ 450
- Forward Speed 7.5 MPH /12.0 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 60 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping Three gauge wheels
- Deck Positions 15
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 24" high back
- Armrests Yes
- Seat Adjustment Lever
- Front Caster Suspension Yes
Wheels
- Rear Tires 20"x 12"-10"
- Front Tires 11"x 6"-5"
- Tire Tread Turf Master / Multi Trac
Specifications
- Series Ultima Series™ ZT
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17AZEAC5A10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
How to Change the Air Filter in Zero-Turn Lawn Mower
MAINTENANCE
Changing the air filter in your zero-turn lawn mower is very easy with a little direction. Watch our instructional video that will take you step by step through
How to Change the Deck Belt on a Cub Cadet Zero-Turn Rider
REPAIRS
Change the mower deck belt on your Cub Cadet zero-turn mower with these helpful tips. Cub Cadet has the mower deck parts and advice you need to do a mower deck belt replacement on your own. Learn mower about repairing your
How to Change the Oil on a Cub Cadet Zero-Turn Rider
MAINTENANCE
Learn how to change the oil in a riding lawn mower with instructions from Cub Cadet. Our video and tips make changing the lawn mower oil on your zero-turn
Maintenance Schedule and Tips
MAINTENANCE
Learn how to keep your mower running smoothly with Cub Cadet's zero-turn mower maintenance schedule and tips.
Zero-Turn Operation Tips
TRICKS AND TIPS
Find out how to use a zero-turn riding lawn mower with these tips from Cub Cadet. Zero-turn mowers allow you greater control over your lawn, especially
Model | Manual | Form Number | |
|---|---|---|---|
| 17AZEAC5A10 | MANL:OPER:TRILING:RZ19:DIGEST | ||
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609B | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609C | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504A | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26861 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26207 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26207A | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26636 | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26636A | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26636B | Download | |
| SHEET:SUPP:WARR/PARTS:CC ZT1/Z | 769-26897 | Download |
