3X 34" MAX H Snow Blower
Documents and Guides
- 420cc OHV Engine is powerful, dependable and equipped with push-button electric start.
- Patented three-stage technology includes an induction accelerator that quickly pulls ice, snow and slush through the system
- Customize your speed to whatever pace suits you best with a hydrostatic drive.
- Heavy duty commercial grade 12-gauge steel side plates and sealed ball bearings on auger and wheel shafts for enhanced strength and durability.
- Features heavy-duty augers and impeller with 14-inch serrated steel construction and a steel shave plate for added durability.
You're shopping available inventory from

3X 34" MAX H Snow Blower Features
Easy Start Ups

Start your engine at the push of a button when you need it most with electric start.
Better Maneuverability

Reversible Polymer skid shoes glide along surfaces for better maneuverability and won’t rust or leave marks on your driveway.
Effortless Control

Trigger-controlled power steering and self-propelled drive for unmatched control, effortless maneuverability and single-hand operation.
Work Longer

Work before dawn or after dark with dual LED headlights.
Added Durability

Heavy-duty cast aluminum auger gearbox and steel chute will hold up against the toughest winters..
Durability

A heavy-duty steel chute allows your machine to take on what winter has to offer.
Strong Warranty

3-year limited residential and 1-year limited commercial warranty for peace of mind.
More Intake

A 23-inch intake height allows you to clear snow more efficiently.
Extra Comfort

Heated hand grips provide extra warmth in extreme weather conditions with the push of a button.
Commercial-Grade Build

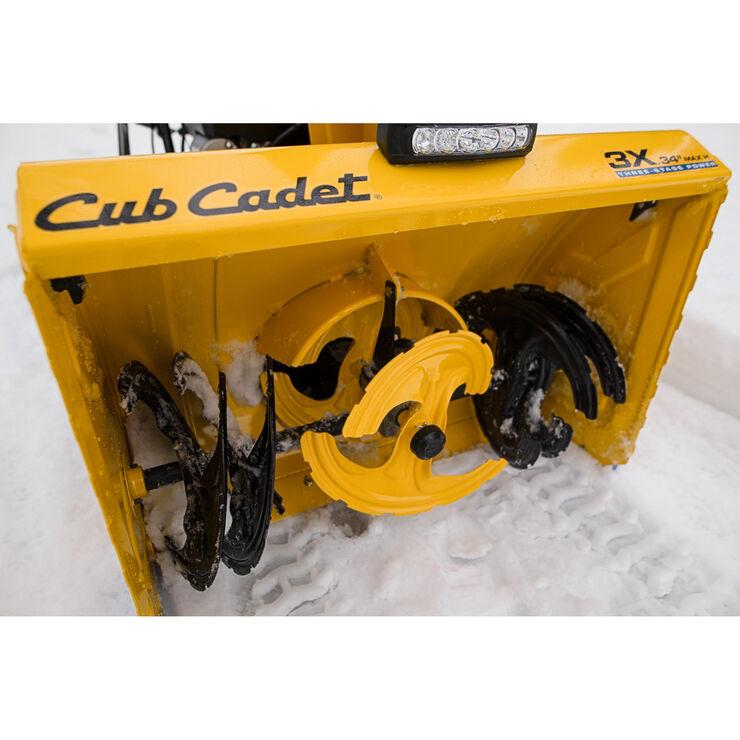

Heavy duty 14-inch steel augers and impeller for added strength and longevity in extreme weather conditions.
Unrivaled Strength

Engineered for extreme with commercial grade 12-gauge steel side plates and sealed ball bearings on auger and wheel shafts bring unrivaled strength.
Patented Three-Stage Technology

Patented three-stage technology includes an induction accelerator that quickly pulls slush through the system and clears deep snowfall up to 50% faster than a Cub Cadet® 2X.
Break Through Snow

Drift cutters allow you to break through tightly packed snow.
Customize Your Speed

A hydrostatic drive allows you to tailor your speed and work at your own pace.
X-Trac™ tires

Strong traction and mobility over snow.
Easy Pitch Control

Change the pitch of the chute to throw snow up to 40-feet.
Redirect Snow

Rotate the chute a full 200° with just 2.5 turns of the crank.
Specs & Maintenance
Engine
- Engine Brand Cub Cadet®
- Engine Model Number 690-WUC
- Engine Displacement 420cc
- Fuel Tank Capacity 5 qt.
- Engine Start Recoil and Push-Button Electric
- Governor Mechanical
- Fuel Delivery Carburetor
Drive System
- Number of Forward Speeds Variable
- Number of Reverse Speeds Variable
- Drive System All-wheel Drive
- Drive Type Hydrostatic
- Tire Size 16" x 6.5"
- Tread X-TRAC™
Warranty
- Warranty 3-year limited residential
- Auger Gearbox Warranty 5-year limited
- Commercial Warranty 1-year limited
- Chute Warranty 3-year limited
- Warranty Disclaimer See owners manual for warranty details and information. Certain restrictions apply.
Controls
- Handle Grip(s) Soft-Touch Heated Grips
- Pitch Control Remote Single-Lever
- Chute Rotation 200°
- Chute Control Overhead Crank
- Single-Hand Operation Standard
- Steering Control Trigger-Controlled Power Steering
Power and Performance
- Clearing Width 34"
- Intake Height 23"
- Auger Gear Box Heavy-duty cast-aluminum
- Number of Stages Three
Dimensions
- Auger Diameter 14''
- Impeller Diameter 14''
- Accelerator Diameter 14''
Additional Specifications
- Headlight(s) Dual LED and LED Light Bar
- Shave Plate Heavy Duty Steel
- Skid Shoes Reversible Poly
- Drift Cutters Yes
- Auger Material Serrated Steel
- Chute Material Steel
- Chute Clearing Device Yes
- Model Number 31AH8E4V710
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Deluxe Snow Thrower Cab Installation
TRICKS AND TIPS
Protect yourself from the elements while you are clearing your driveway with a snow thrower cab. Follow these simple step for installing your cab on your Cub Cadet Two-Stage snow thrower.
How to Prepare Your Snow Blower for Storage in the Off-Season
MAINTENANCE
Learn how to properly retire your snow thrower for the season with these helpful snow blower storage and maintenance ideas from Cub Cadet.
How to Prepare Your Snow Blower for Winter
MAINTENANCE
Prepare your snow blower for use this winter with snow thrower maintenance tips from Cub Cadet. Our snow blower tips will help ensure your machine is
Maintenance Schedule & Tips
MAINTENANCE
Keep your snow blower in good condition with snow thrower maintenance from Cub Cadet. Proper snow thrower maintenance is essential when you're
Recommended Snow Thrower Back-Up Parts
TRICKS AND TIPS
Learn how to replace your Cub Cadet walk-behind lawn mower wheel with this simple five-step guide.
Snow Thrower Safety Tips
SAFETY
Use a snow blower or snow thrower to keep your paved drive and walkways snow-free during the winter months. With snowblower safety tips and operation advice from Cub Cadet, you'll have your driveway cleared of snow in no
Model | Manual | Form Number | |
---|---|---|---|
31AH8E4V710 | MANL:OPER:BILING:31X:3/5/6/800 | ||
MANL:OPER:BILING:31X:3/5/6/800 | 769-11510D | Download | |
MANL:OPER:BILING:31X:5/6/800 | 769-21930 | Download | |
MANL:OPER:BILING:31X:5X/6X/8X: | 769-24536 | Download | |
MANL:OPER:BILING:31X:5X/6X/8X: | 769-26072 | Download | |
MANL:OPER:BILING:31X:5X/6X/8X: | 769-26467 | Download | |
MANL:OPER:BILING:MTD ENG:357/4 | 769-14992 | Download | |
MANL:OPER:BILING:MTD ENG:357/4 | 769-25490 | Download | |
SHEET:SUP:31X2X-3X:CUB:US_CA | 769-24534 | Download | |
SHEET:SUP:31X2X-3X:CUB:US_CA | 769-26490 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-15174 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-17172 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-25882 | Download | |
SHEET:SUP:BILING:EPA:EVP:06301 | 769-15171 | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
SHEET:SUP:ENG:31X:5XX/6XX:CUB | 769-15330 | Download | |
SHEET:SUP:ENG:31X:5XX/6XX:CUB | 769-20750 | Download | |
SHEET:SUP:ENG:31X:5XX/6XX:CUB | 769-22280 | Download |
