XT1 LT46
XT1 ENDURO SERIES
Item#:
13AQA9TTA10
From
$2,599.00
MSRP
XT1 LT46
XT1 ENDURO SERIES
Item#:
13AQA9TTA10
From
$2,599.00
MSRP
Documents and Guides
- The Cub Cadet XT1 LT46 is powered by a 23 hp KOHLER 7000 Series twin cylinder engine
- 46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours
- Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles
You're shopping available inventory from
Browning Equipment, Inc.
800 EAST MAIN STREET,
PURCELLVILLE,
VA
20132
Delivering to:
20149
|

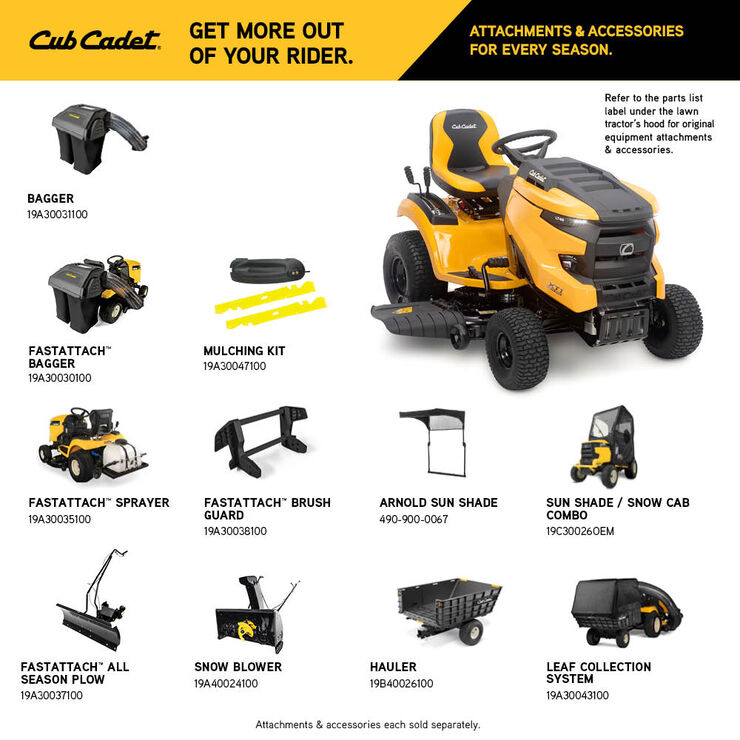

Attachments & Accessories
![42" 3-Stage Snow Blower Attachment](https://www.cubcadet.com/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dwdd2248e2/products/19B40024OEM_5.jpg?sw=280&sh=280&sm=fit "42" 3-Stage Snow Blower Attachment")
XT1 LT46 Features
Hydrostatic
Hydrostatic transmission helps provide smooth operation, no shifting, just push the pedal and go.
Ride with Comfort
Adjustable cut and sew high back 15-in. seat with a 10-degree incline and slide slope designed to provide comfort for an excellent mowing experience.
Heavy Duty Cutting Deck
A stamped deck built with strong materials and an exceptional belt design while delivering a premium cut.
Strong Warranty
Limited 3-year no hour limit warranty and 5-year frame limited warranty for peace of mind
Durability
Cast iron front pivot bar is built to provide strength and rugged performance.
Unmatched Support
Backed by expert service and knowledgeable support from the nationwide network of Cub Cadet® dealers.
More Power
A twin-cylinder Kohler® 7000 Series engine is designed to deliver reliable power to tackle your yard.
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT730
- Engine Displacement 725cc
- Engine Output 23HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq® TL-200
- Forward Speed 5.5 MPH / 8.6 km/h
- Reverse Speed 3 MPH / 4.8 km/h
- Rear Axle 3/4"
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Aluminum
- Rear Differential Lock No
Cutting Deck
- Deck Cutting Width 46 in
- Deck Wash Yes
- Deck Material 12-gauge steel
- Deck Engagement (PTO) Manual
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Manual
- Cutting Height Range 1" - 4"
- Anti-Scalping 4 gauge wheels
- Deck Positions 12
Warranty
- Warranty 3-year unlimited hours
- Frame Warranty 5-year unlimited hours
- Front Axle Warranty 5-year unlimited hours
- Deck Shell Warranty 3-year unlimited hours
- Commercial Warranty No
Chassis
- Frame Robotically welded
- Turning Radius 16"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type 15" high-back
- Armrests No
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
Additional Specifications
- Mulch Kit Available separately
- Headlight(s) Dual-LED
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13AQA9TTA10
Specifications
- Series XT1® Enduro Series™
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 13AQA9TTA10 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738B | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738C | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738D | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-23211C | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-26638 | Download | |
| SHEET:SUPP:WARR/PARTS:CC NX15 | 769-26638A | Download |
