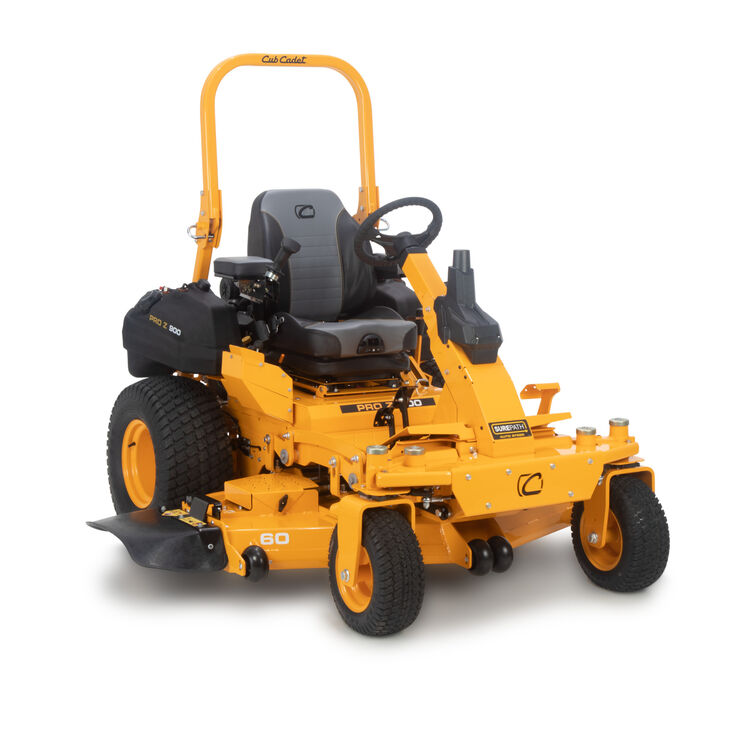

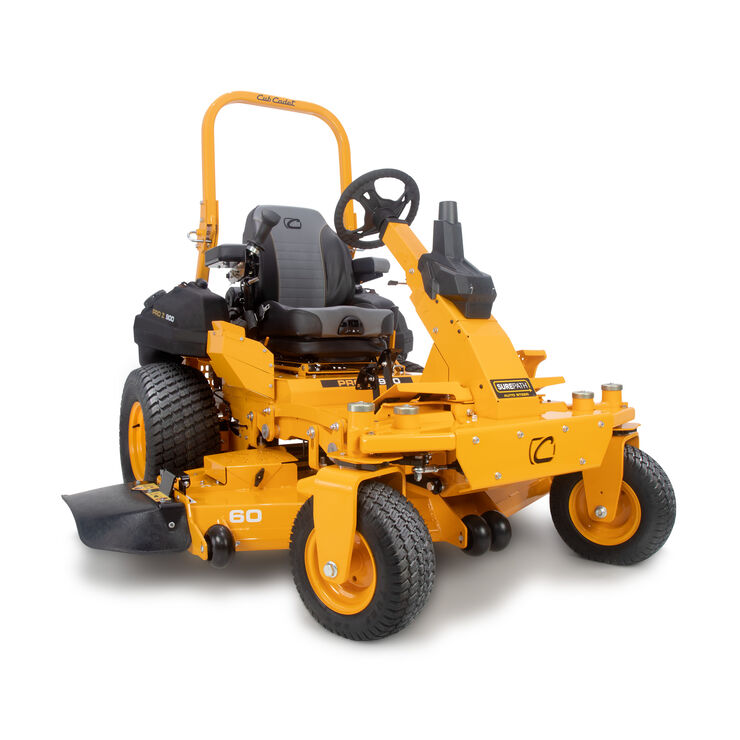

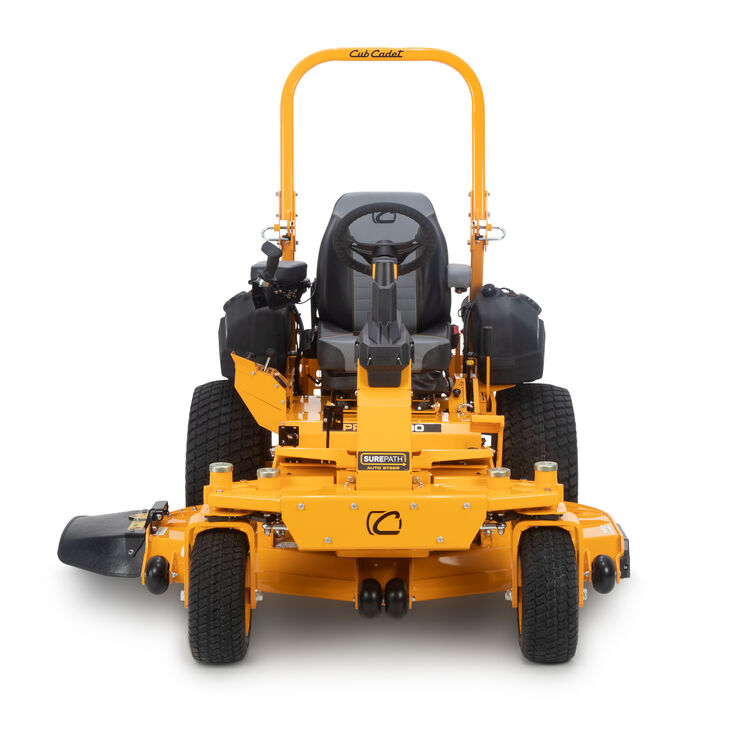

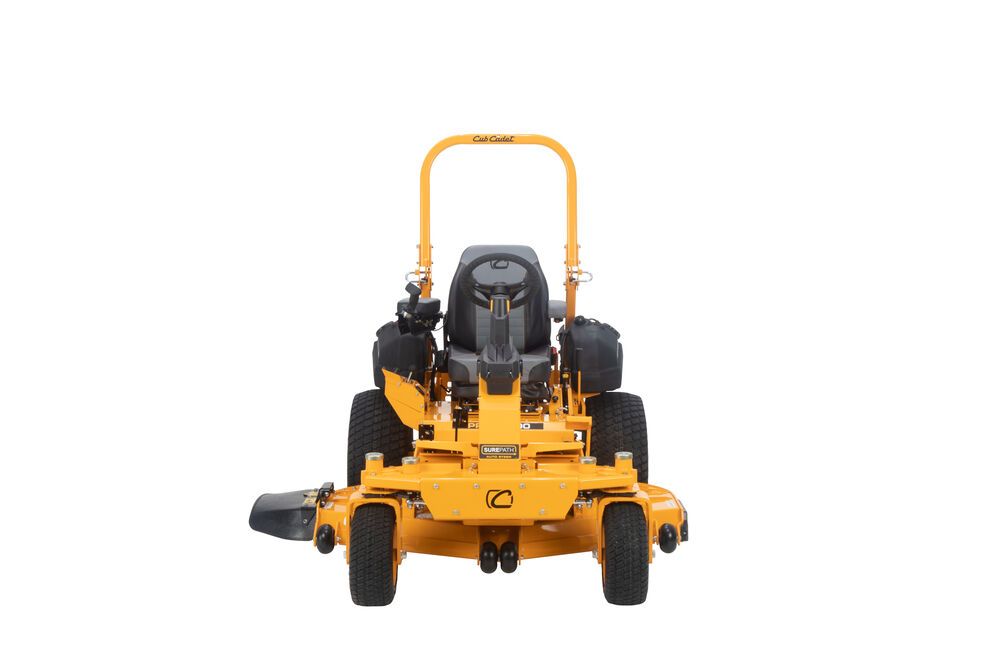

PRO Z 960 S SurePath™
PRO Z 900 S SERIES
Item#:
53FIHMAV050
From
$27,859.89
MSRP

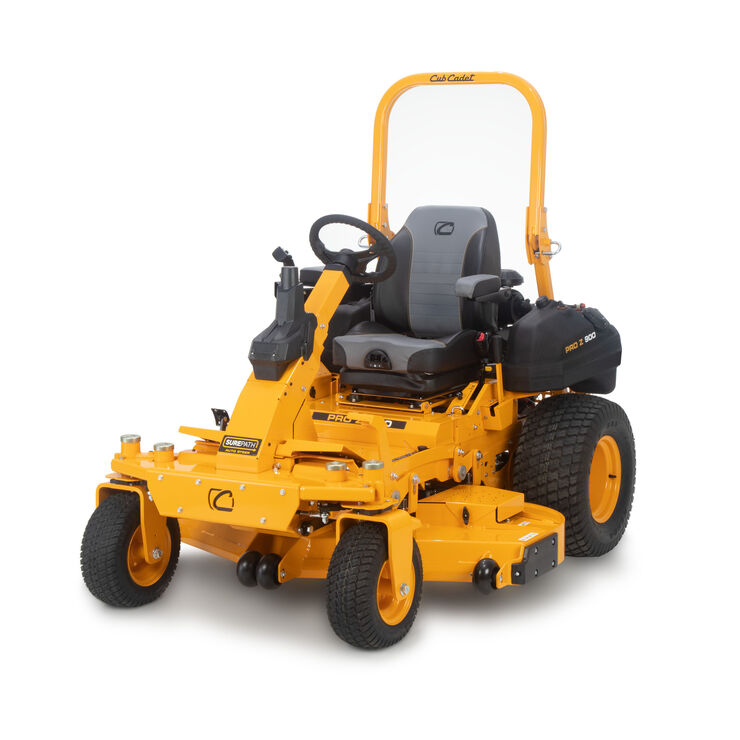

PRO Z 960 S SurePath™
PRO Z 900 S SERIES
Item#:
53FIHMAV050
From
$27,859.89
MSRP
Documents and Guides
- Semi-autonomous mower with GPS technology combined with exclusive four-wheel steering
- Make perfect auto-turns with the push of a button
- 35 HP Kawasaki FX1000v (999cc) engine and 16cc Parker HTG transmission
- Air-ride seat
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
You're shopping available inventory from
Browning Equipment, Inc.
800 EAST MAIN STREET,
PURCELLVILLE,
VA
20132
Delivering to:
20149
|
Attachments & Accessories
PRO Z 960 S SurePath™ Features
Innovative Technology

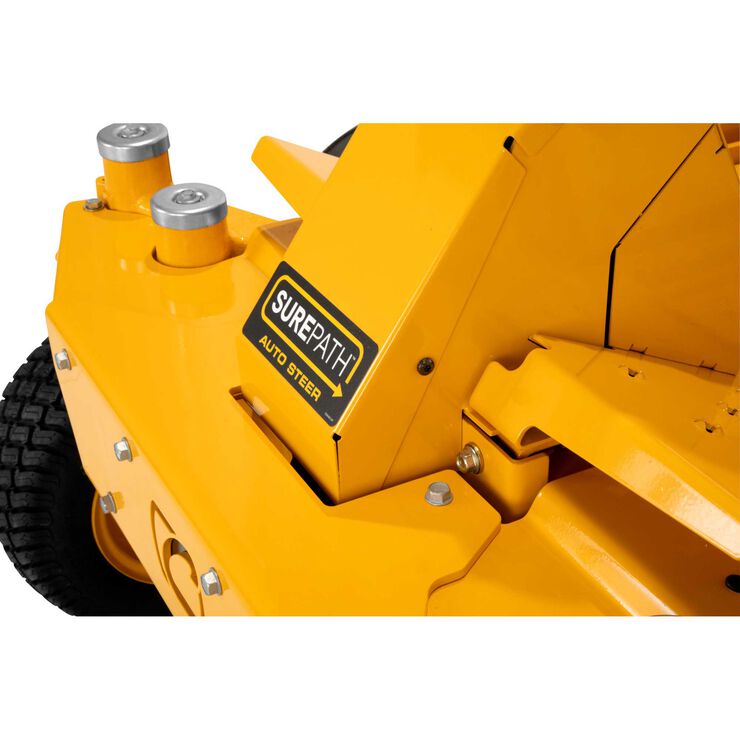

PRO Z™ SurePath™ units are outfitted with GPS Auto Steer technology. Simply set the preliminary cut line, and the PRO Z SurePath units will perform straight cutting paths with an auto-zero-turn at the end of each pass with the touch of a button.
Unmatched Efficiency
Reduce striping overlap by upwards of 7 inches per pass and increase your efficiency and productivity by up to 12% when SurePath is engaged.*

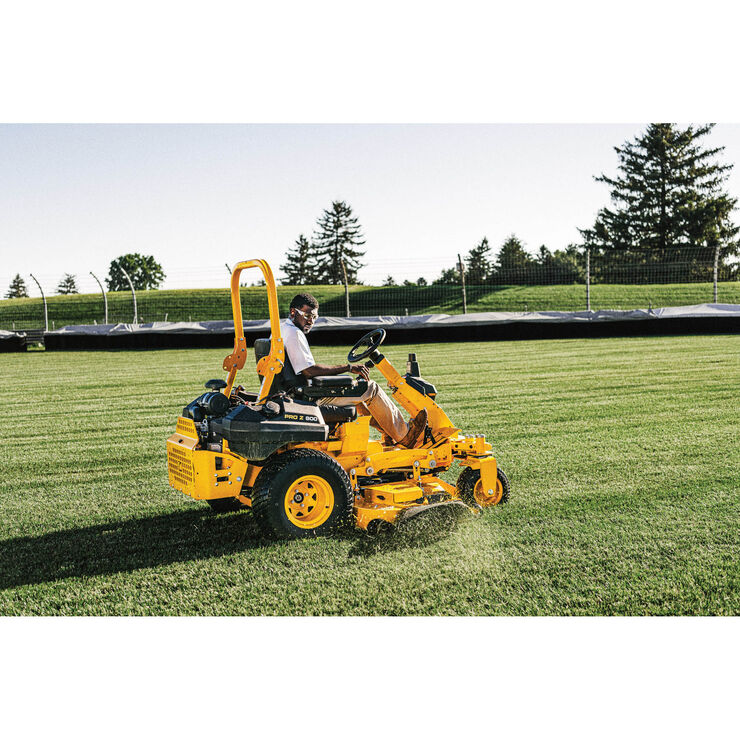

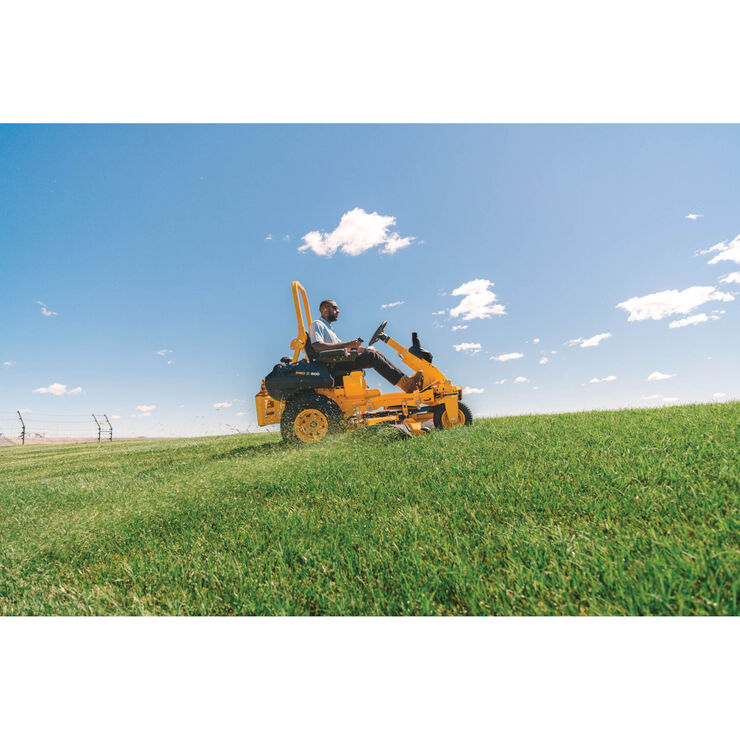

Perfect Striping
Achieve consistent stripes, guided by GPS for the straight lines and accuracy. Combined with a triple-plated fabricated deck and an exclusive electric four-wheel steering system, experience stripes like you’ve never seen.
Specs & Maintenance
Engine
- Engine Brand Kawasaki®
- Engine Model FX Series
- Engine Model Number 1000V
- Engine Displacement 999cc
- Engine Output 35HP
- Fuel Tank Capacity Dual 7.45 gal. US (28.2 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized

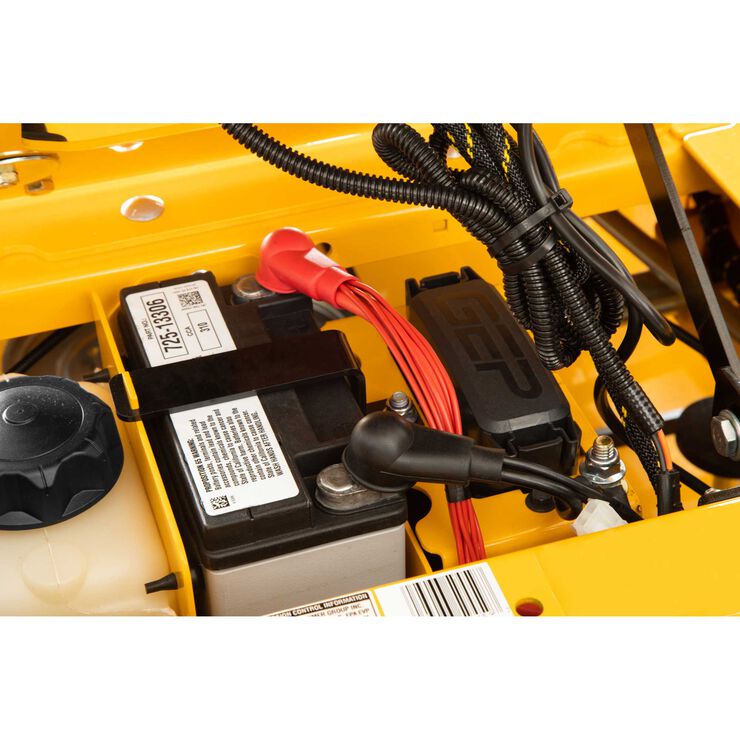

- Charging System 15 amp regulated
- Fuel Gauge Electronic
- Choke Separate Choke
- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Carburetor
Drive System
- Transmission Parker HTG 16cc pump / 310cc wheel motor
- Forward Speed 14 mph / 22.5 km/h
- Reverse Speed 6 mph / 9.5 km/h
Cutting Deck
- Deck Cutting Width 60 in
- Deck Material fabricated 7ga. (.187”) steel shell
- Deck Engagement (PTO) Warner PTO clutch (220 ft-lb) with Soft-Start
- Deck Construction 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
- Spindle Construction 8" sealed cast aluminum housing (maintenance-free)
- Blade(s) 3 high-lift Marbain® blades / 18,500 fpm (approx.)
- Cutting Height Range 1” to 5” in 1/4” increments
- Anti-Scalping 2 front deck gauge wheels
- Deck Positions Foot pedal with spring assist 16 Positions
Chassis
- Frame Fully welded, full-length 3/8 x 5" laser cut steel
- Front Axle 2" x 3" solid axle tube with ISO dampening suspension
- ROPS 2" x 2" spring-latch tool-less foldable 3 position
- Bumper 5/16" Thick Steel rear engine guard
- Rear Tow Hitch Integrated with pre-drilled mounting points for attachments
- Yokes 1/2" thick steel front yokes
Controls
- Brakes Hand-operated lever with integrated hydro pump release lever
- Steering Control High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Comfort
- Seat Type Cushion with seat belt
- Armrests Padded arm rests
- Seat Suspension High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension)
- Seat Adjustment Angle back adjust and lumbar support
Wheels
- Rear Tires 26" x 12"-12"
- Front Tires 16" x 6.5"-8"
- Tire Tread Turf Tread
Dimensions
- Dimensions L/W/H 88" L x 73" W x 75" H (ROPS up)
- Weight (approx.) 1610 lbs.
Additional Specifications
- Hour Meter Crew Boss
- Discharge Chute High-density, impact-resistant rubber
- Cup Holder Intergrated into Side Pod
- Model Number 53FIHMAV050
Warranty
- Warranty 3 year / no hour limit commercial warranty
- Deck Shell Warranty 5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty 3 year / no hour limit commercial warranty
Tech Package

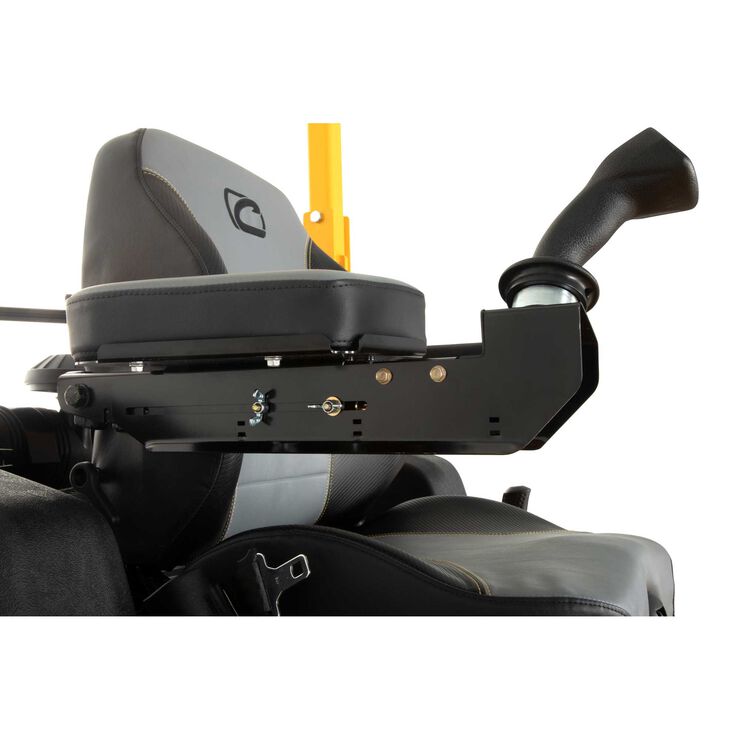

- Joystick Control Handle Engagement Indicator Lights for Cut Line Setting, RH/LH Auto Turning

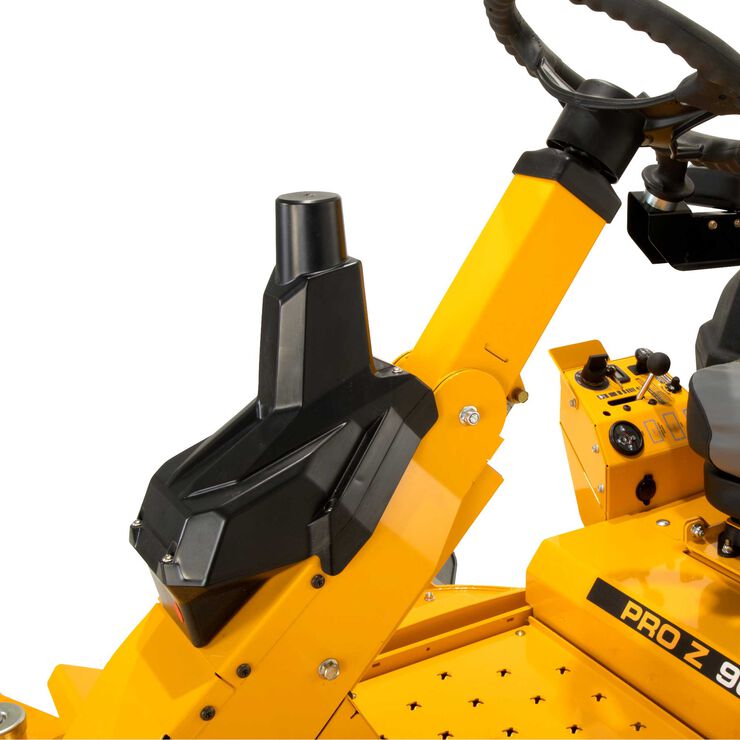

- GPS / Tower Antenna LED lights show Satellite Connection for Auto-Steer Engagement
- Overlap Cutting / Tracking Dash Mounted Adjustable knob for Deck Cutting Overlap
